Datalogic

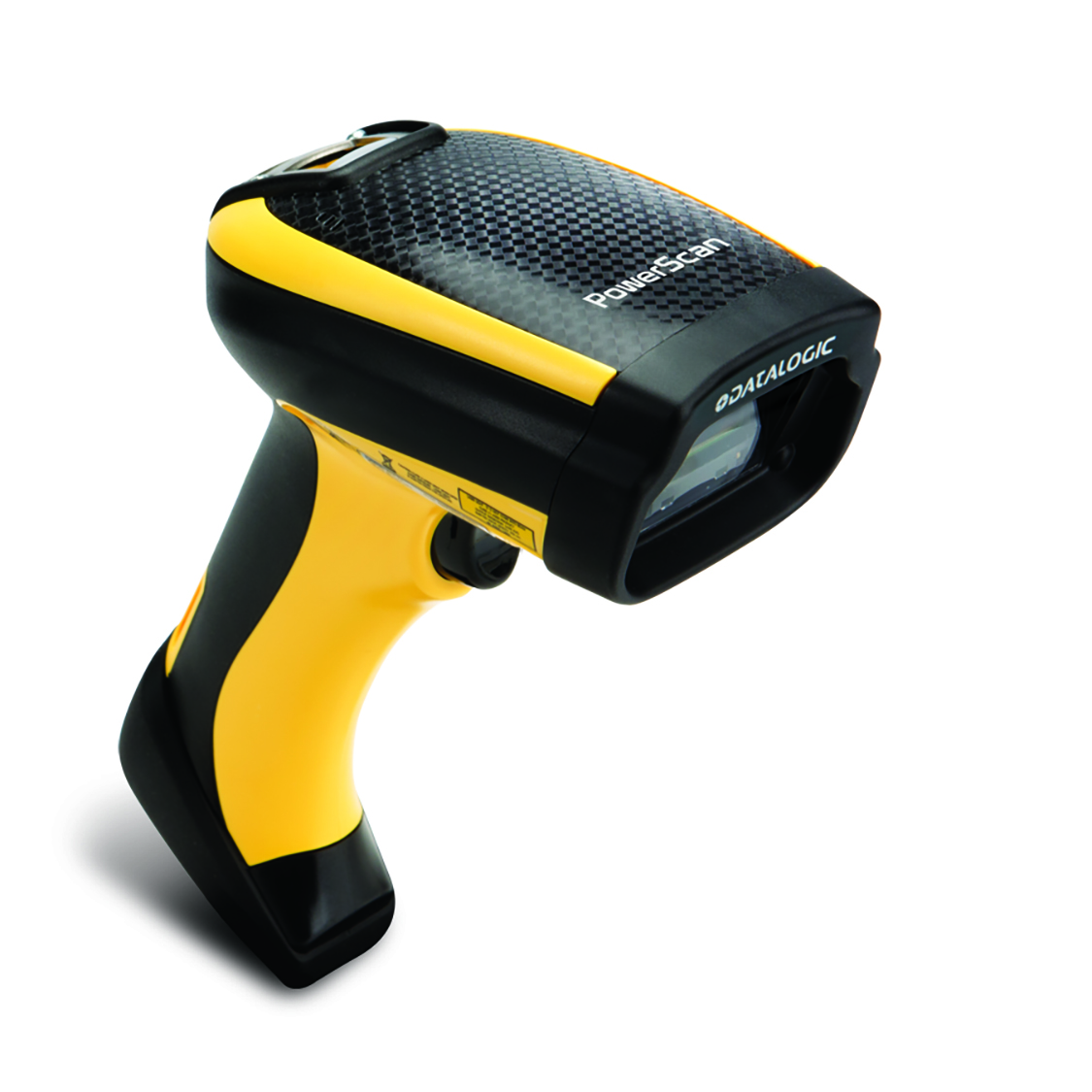

Datalogic PowerScan PM9501, 910 MHz, Direct Part Marking Evo, Ethernet Kit
Manufacturer part number: PM9501-DPM910RBK30
Series: PowerScan 9500
- Schmalband-Funk 910 MHz
- Für direktmarkierte Codes (DPM Evo)
- Komplettpaket mit Ethernet-Anschluss
- Wechselakku
- Liest 1D- und 2D-Codes
- Schutzart IP65
- Resolution (pixels)
- 864 × 544
- Interface
- RS-232 / USB / Tastatureinschleifung Multi-Interface
- Ingress protection
- IP65
- Weight
- 330 g
Price and availability on request
We quote the price individually per inquiry, based on configuration and quantity.
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedDescription
Handscanner von Datalogic, Serie PowerScan 9500, Bestellnummer PM9501-DPM910RBK30.
Herstellerbezeichnung: PowerScan PM9501, 910 MHz, Direct Part Marking Evo, Ethernet Kit, Removable Battery (Kit inc. Scanner, Base Station BC9180-910, Power Brick 8-0935 and Power Cord 6003-0941.)
Technical data
| Manufacturer part number | PM9501-DPM910RBK30 |
|---|---|
| Resolution | 0.5 MP |
| Resolution (pixels) | 864 × 544 |
| Sensor format | 16:10 |
| Housing dimensions | 21.2 x 11.0 x 7.4 cm |
| Weight | 330 g |
| Symbology | GS1 DataBar™ Codes. Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Postnet; Royal Mail Code (rm4scc) Ean/jan Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites; GS1 DataBar™ Codes. Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Postnet; Royal Mail Code (rm4scc) Ean/jan Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites; GS1 DataBar™ Codes. Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Postnet; Royal Mail Code (rm4scc) Ean/jan Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; Mac |
| Supply voltage | 5 V |
| Ingress protection | IP65 |
| DPM capable | Yes |
| Sensor manufacturer | Other |
| Marking type | Printed codes, Direct part marked codes (DPM) |
Documents
- Download datasheet
Datasheet PowerScan 9500 Serie
Datasheet · DE · 358 KB
- Download datasheet
Datasheet PowerScan 9501-DPM Evo
Datasheet · DE · 461 KB
