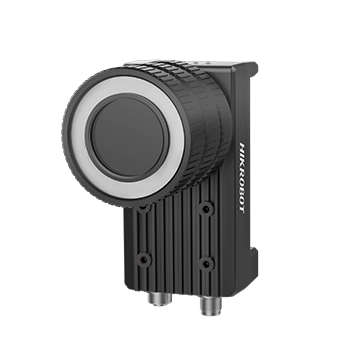

HIKROBOT Logistics barcode reader MV-ID6120PM-00C-NNG - 12 MP

Resolution:: 12 MP
Frame rate:: 28 fps
Lens:: C-mount
Interface:: GigE
Ingress protection:: IP67 ( under proper installation of waterproof lens cap)

The manufacturer has announced end of life (EoL preparation) for this product. It is still regularly orderable; we will inform you in good time once a successor has been confirmed.

End of life announced - still orderable

Not sure which model fits?

A technical contact will review your application and recommend the right configuration.

Have your application reviewed

Description

Key Feature - Adopts 12 MP sensor to provide high-quality images. - Flexible installation and convenient debugging. - Supports continuous reading of various codes with high speed. - Supports recognizing various poor printing quality codes. - Supports gigabit Ethernet transmission to output images. - Supports networking of multiple devices. - Ingress protection 67.

Technical data

Artikelnummer	MV-ID6120PM-00C-NNG
Type	12MP Logisitc Code Reader
Symbologies	1D codes: Code 39, Code 128, Code 93, ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE 2D codes: QR Code, Data Matrix
Max. frame rate	28 fps
Max. reading speed	84 codes/sec
Sensor type	CMOS, global shutter
Pixel size	3.45 μm × 3.45 μm;3.2 μm × 3.2 μm
Sensor size	1.1";1"
Resolution	4096 × 3072
Exposure time	16 μs to 1 sec
Gain	0 dB to 37 dB;0 dB to 40 dB
Mono/color	Mono
Communication protocol	SmartSDK, TCP Client, TCP Server, Serial, FTP
Data interface	Gigabit Ethernet (1000 Mbit/s)
Digital I/O	12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, and RS-232 × 1.
Power supply	12 VDC to 24 VDC
Max. power consumption	17 W @ 24 VDC
Lens mount	C-mount
Light source	Not included
Lens cap	Included
Dimension	126 mm × 66 mm ×113.2 mm (5.0" × 2.6" × 4.5")
Weight	Approx. 750 g (1.7 lb.)
Ingress protection	IP67 ( under proper installation of waterproof lens cap)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Client software	IDMVS
Certification	CE, RoHS
