OPT
OPT-M3545-78M
Manufacturer part number: OPT-M3545-78M

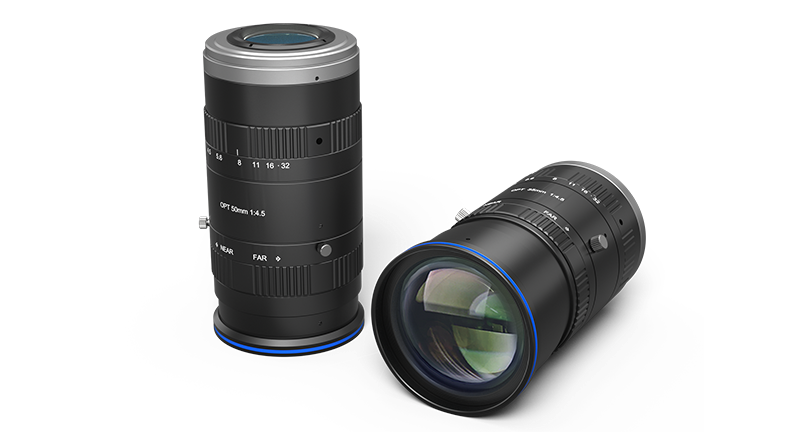

78MP Fixed Focal Length Lenses
Price and availability on request
We quote the price individually per inquiry, based on configuration and quantity.
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedDescription
**OPT-M3545-78M** aus der Serie „78MP Festbrennweiten“ von OPT Machine Vision.
**Produkthighlights**
- 78MP Fixed Focal Length Lenses - Compatible with cameras which pixel ≥ 3.2μm and max. full frame (Ø44mm) sensor; - resolution up to 160lp/mm in full FOV. - The coating band is 400-1000nm, compatible with visible light and near-infrared band applications. - Floating focus structure design - The floating focus structure design is adopted to effectively ensure good optical performance under a wide working distance range[1] - [1] Equipped with flange adjustment gaskets to maximize the optical performance of the lens used with the camera.
Technische Daten und Datenblatt siehe unten. Preis und Lieferzeit auf Anfrage.
Technical data
| Manufacturer part number | OPT-M3545-78M |
|---|---|
| Image circle | 44 |
| Mount | M58 |
| magnification | 0.246X at WD100; 0.107X at WD300; 0.069X at WD500 |
| Optimum working distance | 100 mm |
