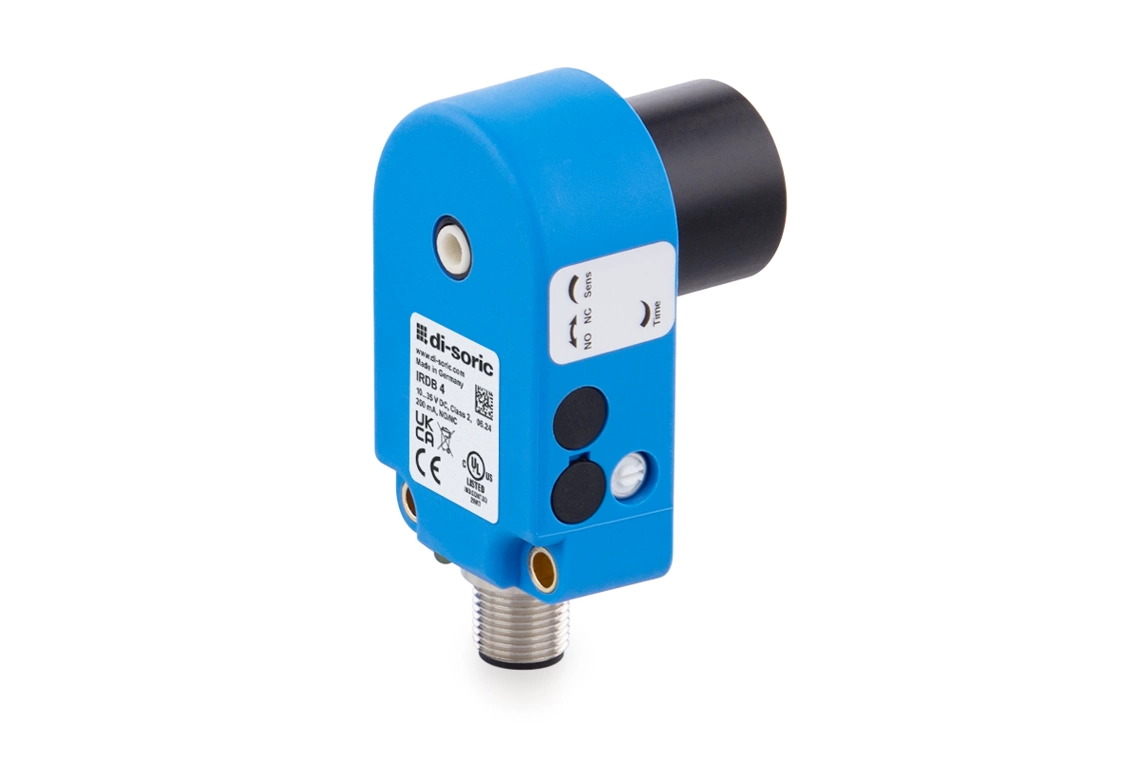

di-soric IRDB-4-NSOK-IBS
- Operating principle:
- Inductive
- Switching output:
- npn, 200 mA, NO/NC, switchable
- Supply voltage:
- 10 … 35 V DC (Supply Class 2)
- Connection:
- Connector, M12
- Ingress protection:
- IP 67
Price and availability on request
Not sure which model fits?
A technical contact will review your application and recommend the right configuration.
Have your application reviewedDescription
The inductive wire break sensors of the IRDB series are used to detect wire breaks. The sensors are available in sizes Ø 4 mm and 6 mm. They are quick to commission and have no adjustment elements. These sensors work on the static operating principle and have a short response time.
- Compact design
- Wear-resistant ceramic insert
- High resolution
- Short response time
- Adjustable pulse stretching
- Static operating principle
- Insensitive to dirt
- Metal connector
- High degree of protection
Technical data
| Part number | IRDB-4-NSOK-IBS |
|---|---|
| Operating principle | Inductive |
| Supply voltage | 10 … 35 V DC (Supply Class 2) |
| Idle current (max.) | 11 mA |
| Isolation voltage | 1000 V |
| Housing material | Plastic (PA) |
| Material | POM (Ring), Keramik (Buchse) |
| Protection class (electrical) | III, Operation on safety extra-low voltage |
| Evaluation | Statisch |
| Switching output | npn, 200 mA, NO/NC, switchable |
| Switching function | Normally open (NO), Normally closed (NC) |
| Voltage drop (max.) | 2 V |
| Response time | 0.50 ms |
| Operating temperature | -25 … +70 °C |
| Ingress protection | IP67 |
| Connection | Connector, M12, 4-pin, A-coded |
Documents
- Download datasheet
Datasheet di-soric IRDB-4-NSOK-IBS
Datasheet · DE · 823 KB
