di-soric

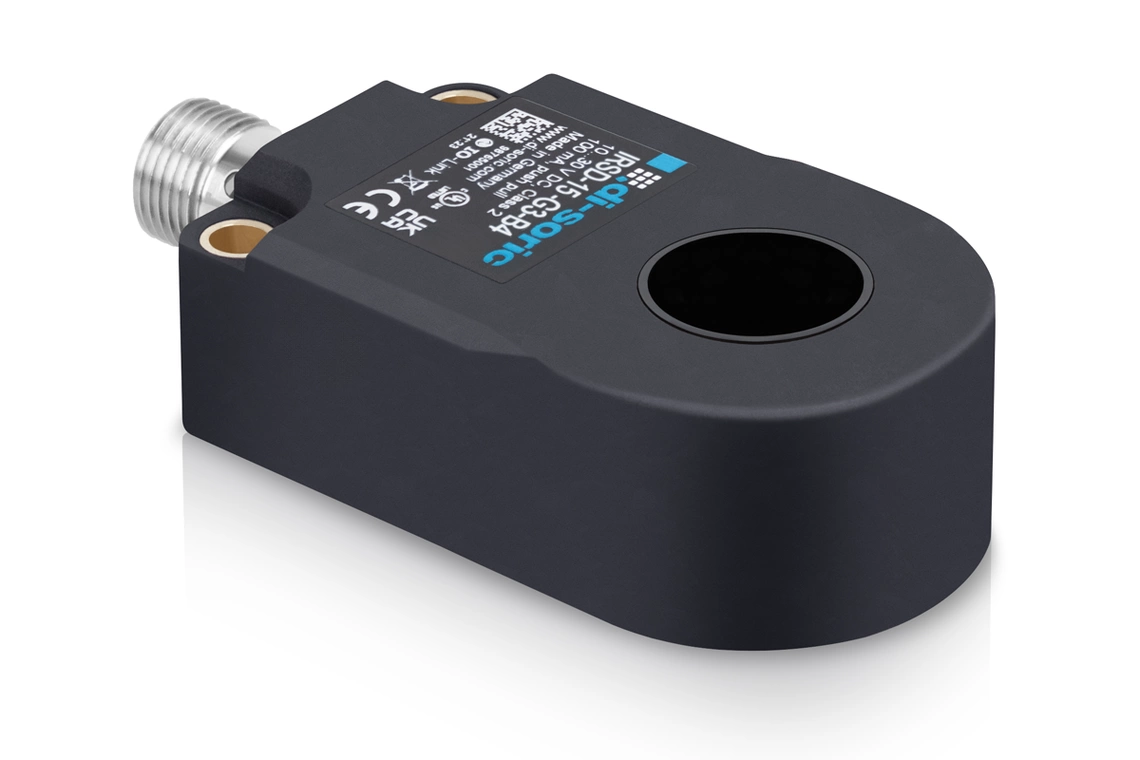

di-soric IRSD-15-G3-B4
- Operating principle:
- Inductive
- Switching output:
- Push-pull/PNP/NPN, 100 mA, NO/NC, switchable
- Supply voltage:
- 10 … 30 V DC
- Connection:
- Connector, M12
- Ingress protection:
- IP 67
Price and availability on request
Not sure which model fits?
A technical contact will review your application and recommend the right configuration.
Have your application reviewedDescription
The IRSD inductive ring sensors with IO-Link offer extensive configuration options for application-specific integration and reliably detect even the smallest metal parts. They are available with inner diameters from 6.1 to 50.1 mm and are very well suited to rapidly fed parts.
- High resolution
- Short response time
- Adjustable sensitivity and pulse stretching
- Insensitive to dirt
- Switchable between static and dynamic operating principle
- Metal connector
- High degree of protection
- Frequency switching to reduce the mounting distance
- Intelligent teach-in procedure
- Remote teach
Technical data
| Part number | IRSD-15-G3-B4 |
|---|---|
| Operating principle | Inductive |
| Supply voltage | 10 … 30 V DC |
| Idle current (max.) | 30 mA |
| Isolation voltage | 500 V |
| Housing material | Plastic (PA) |
| Material | POM (Ring) |
| Protection class (electrical) | III, Operation on safety extra-low voltage |
| Switching output | Push-pull/PNP/NPN, 100 mA, NO/NC, switchable |
| Switching function | Normally open (NO), Normally closed (NC) |
| Voltage drop (max.) | 2 V |
| Interface | IO-Link |
| Operating temperature | -25 … +70 °C |
| Ingress protection | IP67 |
| Connection | Connector, M12, 4-pin, A-coded |
