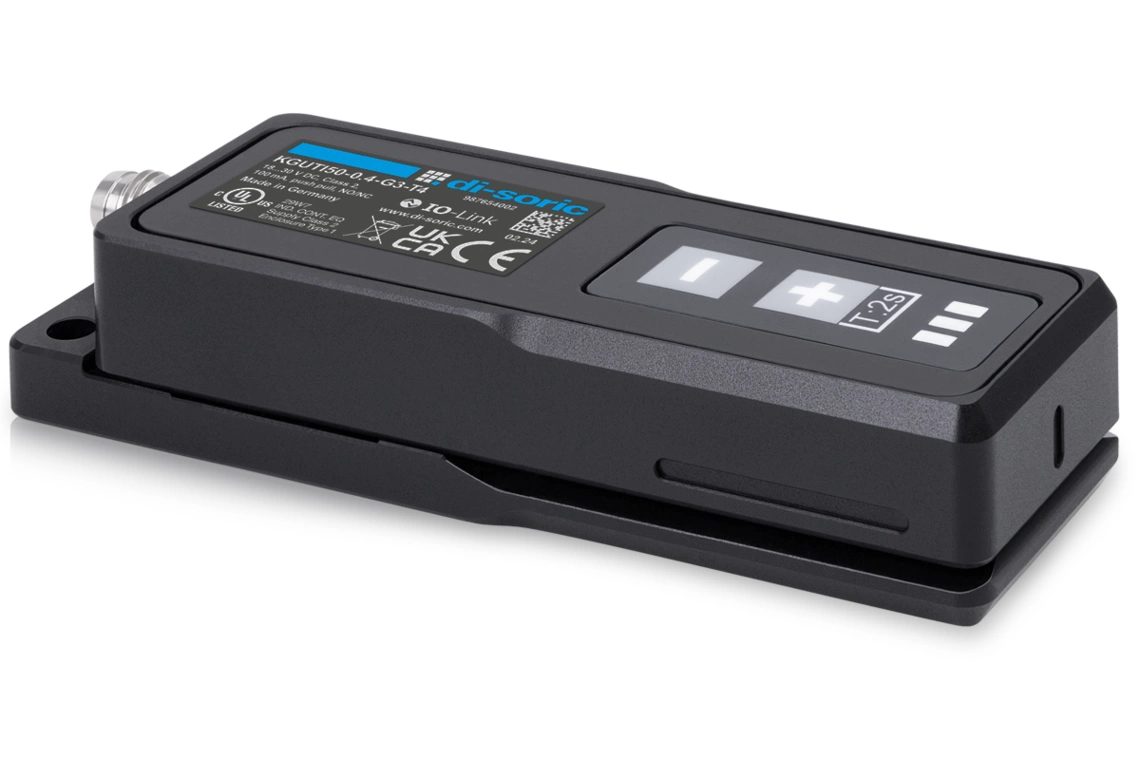

di-soric KGUTI50-0.4-G3-T4
- Operating principle:
- Capacitive
- Design:
- Fork
- Detection range:
- 22 mm
- Switching output:
- Push-pull, 100 mA, NO/NC, switchable
- Supply voltage:
- 18 … 30 V DC
- Connection:
- Connector, M8
- Ingress protection:
- IP 67
Price and availability on request
Not sure which model fits?
A technical contact will review your application and recommend the right configuration.
Have your application reviewedDescription
The innovative dual operating concept - either IO-Link configuration and diagnostics or auto-teach - allows the sensors to be commissioned quickly and repeatably.
- Detection of transparent and paper labels
- Intuitive teach-in via membrane keypad, with fine adjustment
- IO-Link
- Rugged metal housing
- Separable housing
- Remote teach with key lock function
- Parallel operation, pin 2 / label detected and IO-Link (pin 4)
Technical data
| Part number | KGUTI50-0.4-G3-T4 |
|---|---|
| Operating principle | Capacitive |
| Supply voltage | 18 … 30 V DC |
| Idle current (max.) | < 40 mA |
| Isolation voltage | 500 V |
| Housing length | 102 mm |
| Housing material | Aluminium (black, anodized) |
| Protection class (electrical) | III, Operation on safety extra-low voltage |
| Design | Fork |
| Special features | Steckerabgang nach hinten |
| Product series | KGUTI capacitive |
| Scope of delivery | Sensor, Instructions available online |
| Switching output | Push-pull, 100 mA, NO/NC, switchable |
| Switching function | Normally open (NO), Normally closed (NC) |
| Voltage drop (max.) | 2.5 V |
| Interface | IO-Link V1.1.3, COM2 (Smart Sensor Profile 2nd Edition V1.1 SSP 4.1.1) |
| Detection range | 22 mm |
| Indicator | LED green - Status, yellow - switching output, red - warning |
| Operating temperature | 0 … +60 °C |
| Ingress protection | IP67 |
| Connection | Connector, M8, 4-pin |
