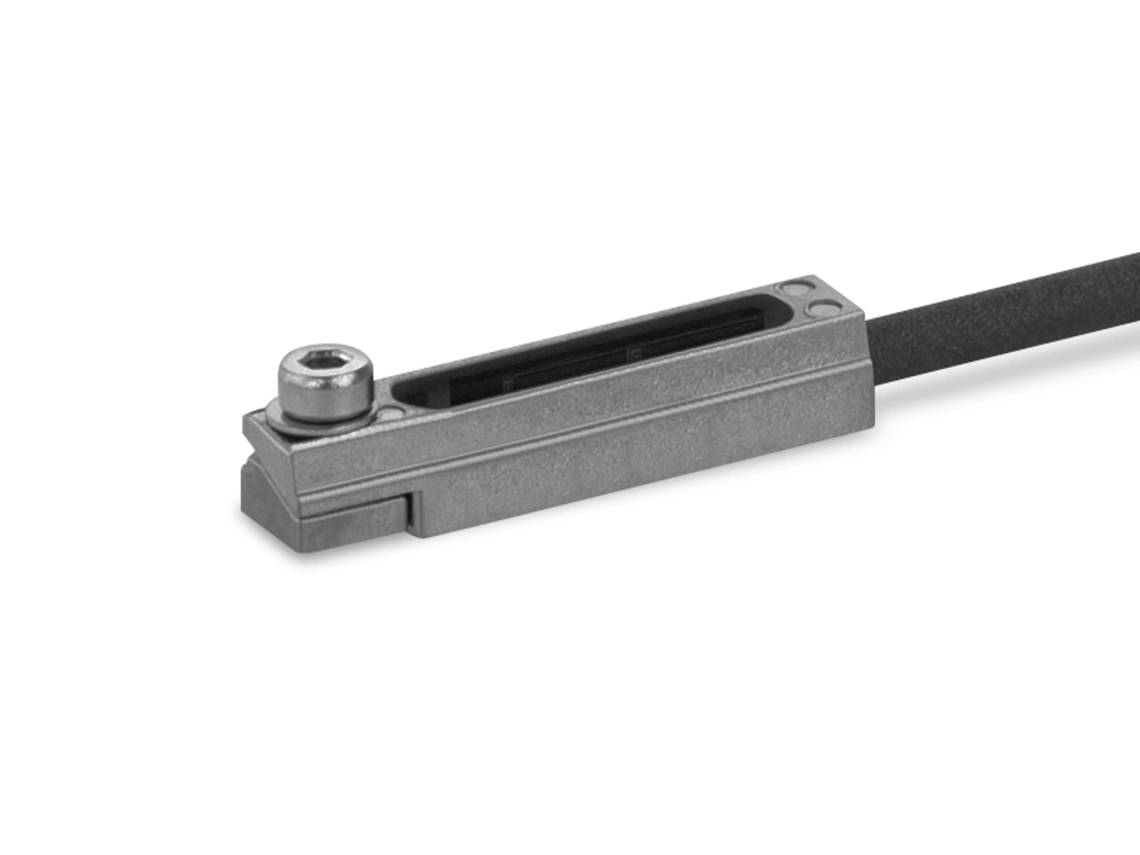

di-soric MZEK-25-PSLK
- Operating principle:
- Magnetic field
- Switching output:
- pnp, 200 mA, NO, kurzschlussfest
- Supply voltage:
- 10 … 30 V DC
- Connection:
- Cable, 2.5 m
- Ingress protection:
- IP 68 (Gerät and cable) / IP 67 (Anschlussstecker)
Price and availability on request
Not sure which model fits?
A technical contact will review your application and recommend the right configuration.
Have your application reviewedDescription
Our cylinder sensors for the T-slot are designed for all common pneumatic cylinders with built-in magnets.
- For pneumatic cylinders with a T-slot
- Metal housing
- Clamping wedge fixing, leaves no marks on the cylinder
- Can be readjusted precisely
- Fully electronic
- High degree of protection
- Accessories available for mounting on round, tie-rod and profile cylinders
Technical data
| Part number | MZEK-25-PSLK |
|---|---|
| Operating principle | Magnetic field |
| Supply voltage | 10 … 30 V DC |
| Idle current (max.) | 10 mA |
| Isolation voltage | 500 V |
| Housing length | 25 mm |
| Housing material | Die-cast zinc |
| Cable material | PUR |
| Protection class (electrical) | III, Operation on safety extra-low voltage |
| Product series | MZEK |
| Switching output | pnp, 200 mA, NO, kurzschlussfest |
| Switching function | Normally open (NO) |
| Voltage drop (max.) | 2 V |
| Indicator | LED yellow - output signal |
| Switching frequency | 1000 Hz |
| Operating temperature | -25 … +70 °C |
| Ingress protection | IP68 |
| Connection | Cable, 2.5 m |
