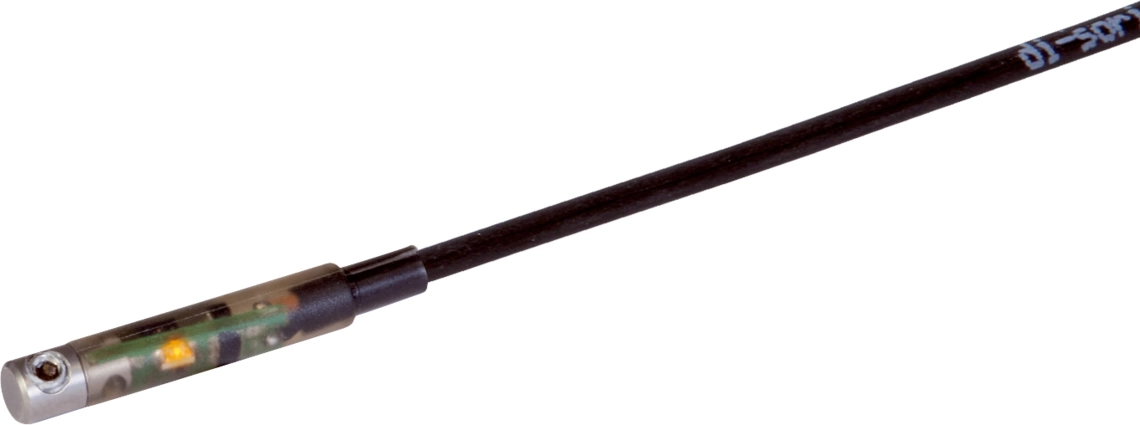

di-soric MZES-3.9-PS-K-TSSL
- Operating principle:
- Magnetic field
- Switching output:
- pnp, 100 mA, NO
- Supply voltage:
- 10 … 35 V DC
- Connection:
- Pigtail, 0.3 m
- Ingress protection:
- IP 67
Price and availability on request
Not sure which model fits?
A technical contact will review your application and recommend the right configuration.
Have your application reviewedDescription
Our gripper sensors are designed and developed for gripper systems used as end-of-arm tooling on gantries and robots in automated processes. The gripping systems are configured individually for the respective application across a wide range of industries.
- Specially aligned magnetic field for use on grippers with a 3.9 mm C-slot
- Short design
- Stainless steel mounting element
- Highly flexible cable
- Fully electronic
- Fully potted electronics, vibration-proof
- High repeatability
- High degree of protection
Technical data
| Part number | MZES-3.9-PS-K-TSSL |
|---|---|
| Operating principle | Magnetic field |
| Supply voltage | 10 … 35 V DC |
| Idle current (max.) | 12 mA |
| Isolation voltage | 500 V |
| Housing length | 21 mm |
| Housing material | Stainless steel (V2A 1.4301 / AISI 304) / plastic |
| Cable material | TPU |
| Protection class (electrical) | III, Operation on safety extra-low voltage |
| Product series | MZES |
| Switching output | pnp, 100 mA, NO |
| Switching function | Normally open (NO) |
| Voltage drop (max.) | 2 V |
| Indicator | LED yellow - output signal |
| Switching frequency | 1000 Hz |
| Operating temperature | -20 … +70 °C |
| Ingress protection | IP67 |
| Connection | Pigtail, 0.3 m, M8, 3-pin |
