di-soric

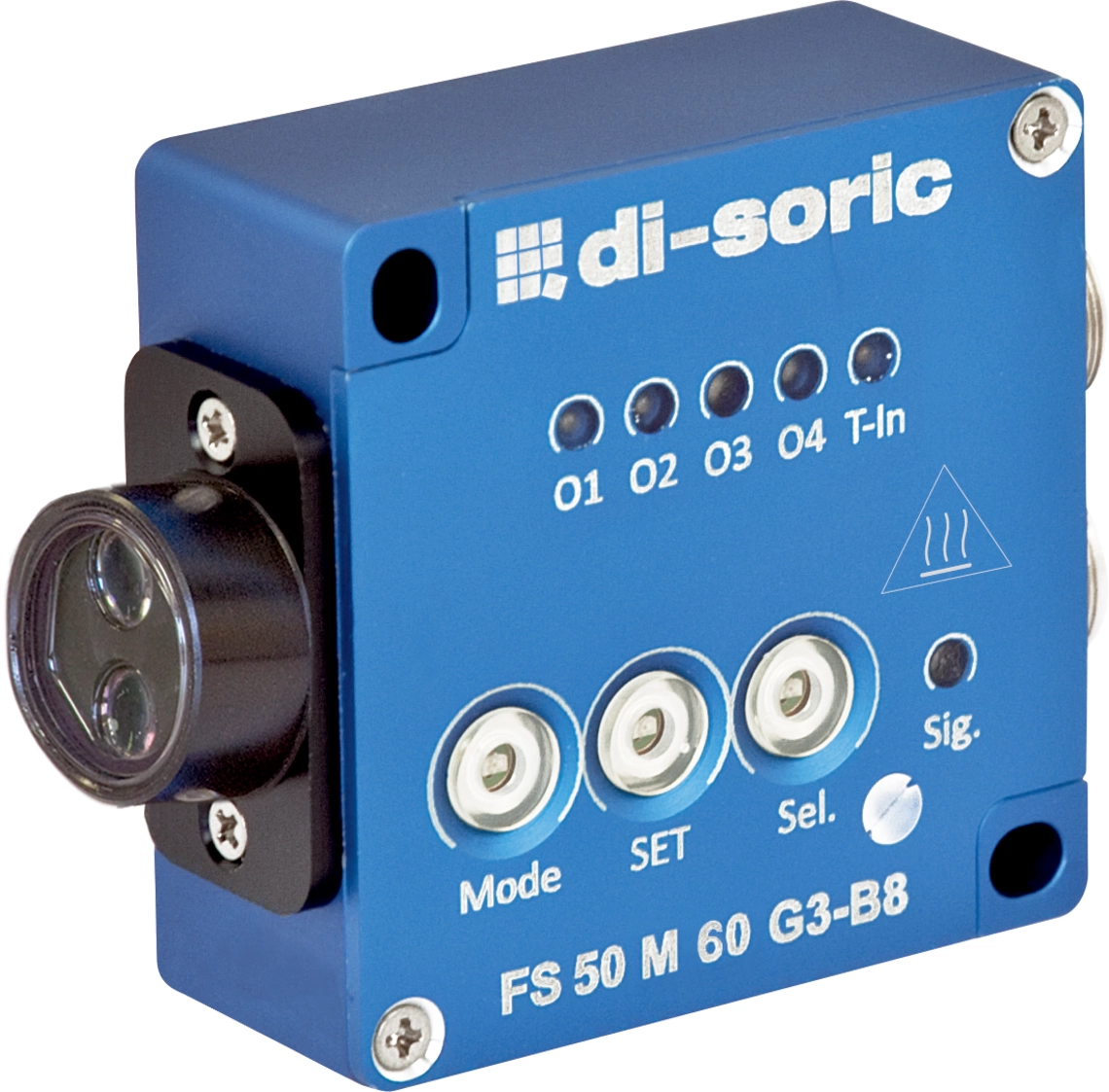

di-soric FS-50-M-60-G3-B8
- Operating principle:
- Optical
- Detection range:
- 30 … 60 mm
- Switching output:
- pnp/npn (4x), NO/NC
- Light source:
- LED (abschaltbar)
- Supply voltage:
- 18 … 28 V DC
- Connection:
- Connector, M9
- Ingress protection:
- IP 54
Price and availability on request
Not sure which model fits?
A technical contact will review your application and recommend the right configuration.
Have your application reviewedDescription
The FS-50 color sensor with a fiber-optic connection or fixed optics can store up to 100 colors. Colors and tolerances are taught in via the keypad using multi-teach. Some versions of the FS-50 series can be configured repeatably using PC software.
- Fixed optics
- 4 channels, teach-in for many standard applications
- 15 channels with binary coding
- Very short response time
- Adjustable color tolerance
- High ambient light compensation
- Integrated long-term stabilization
- Distinguishes the finest color shades
- Configuration via keys and software
- Key lock function
Technical data
| Part number | FS-50-M-60-G3-B8 |
|---|---|
| Operating principle | Optical |
| Supply voltage | 18 … 28 V DC |
| Idle current (max.) | 500 mA |
| Housing length | 21 mm |
| Housing material | Aluminium (anodized) |
| Protection class (electrical) | III, Operation on safety extra-low voltage |
| Switching output | pnp/npn (4x), NO/NC |
| Switching function | Normally open (NO), Normally closed (NC) |
| Voltage drop (max.) | 2 V |
| Interface | RS232 |
| Light source | LED (abschaltbar) |
| Detection range | 30 … 60 mm |
| Switching hysteresis (max.) | 0 … 255 % (10 % voreingestellt) |
| Indicator | LED (Kanalzustand (4x), Programmierung (5x)) |
| Response time | 0.05 ms |
| Operating temperature | -10 … +55 °C |
| Ingress protection | IP54 |
| Connection | Connector, M9, 8-pin |
