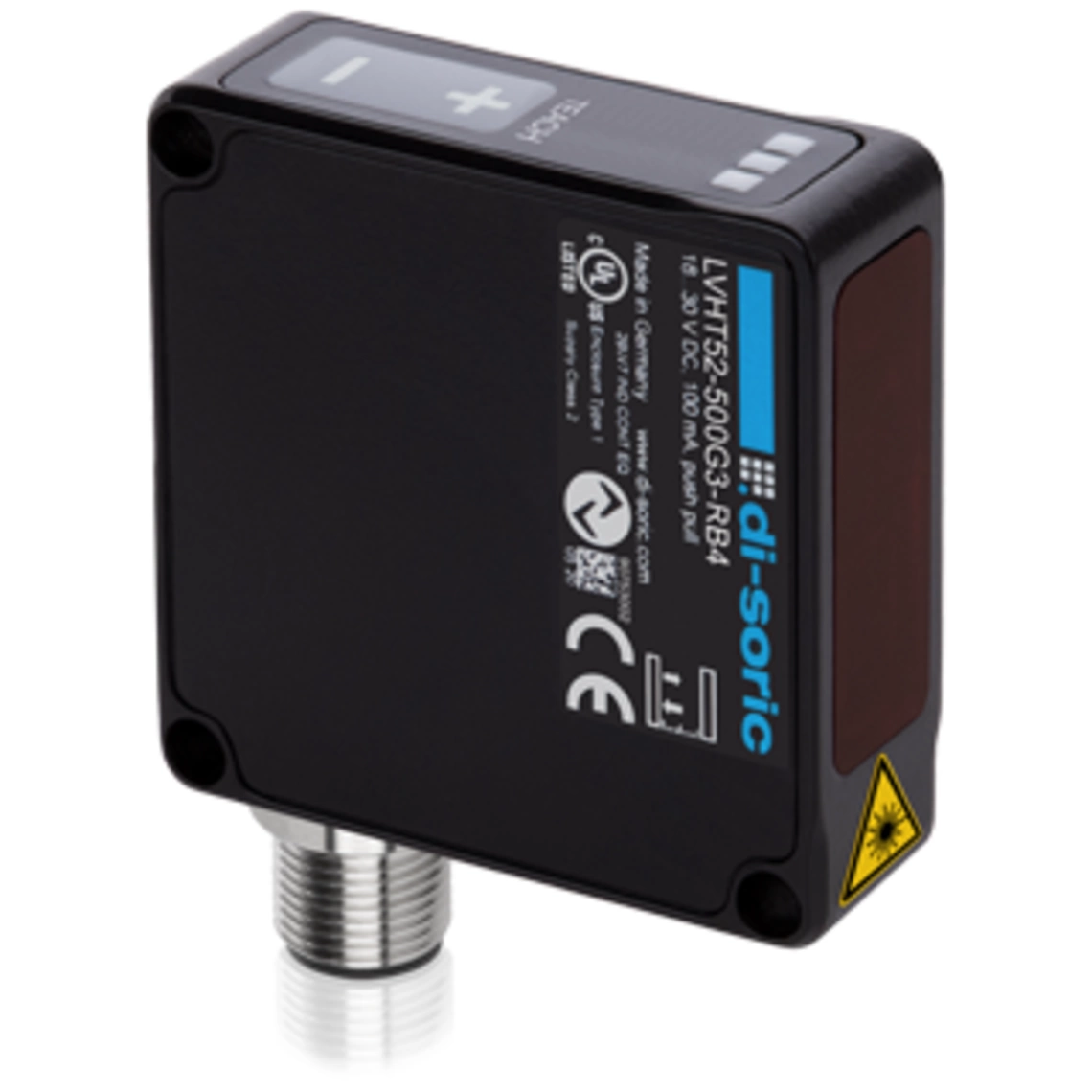

di-soric LVHT52-500G3-RB4
- Operating principle:
- Optical
- Design:
- Cuboid
- Detection range:
- 50 … 500 mm
- Switching output:
- Push-pull (1x), 100 mA, NO/NC
- Light source:
- Laser
- Supply voltage:
- 18 … 30 V DC
- Connection:
- Connector, M12
Price and availability on request
Not sure which model fits?
A technical contact will review your application and recommend the right configuration.
Have your application reviewedDescription
For applications that call for precise switching rather than measuring, the LVHT-52 with a detection range from 50 to 500 mm and a precisely adjustable window mode is a very efficient solution. Its highly intuitive setting via the plus/minus keys allows quick commissioning.
- IO-Link
- Accurate detection
- Wide detection range
- Foreground and background suppression
- Laser class 1
- Red laser with a small laser spot
- Easy operation
- Rugged metal housing
- Radial connector outlet
Technical data
| Part number | LVHT52-500G3-RB4 |
|---|---|
| Operating principle | Optical |
| Supply voltage | 18 … 30 V DC |
| Idle current (max.) | 60 mA |
| Isolation voltage | 500 V |
| Housing length | 51 mm |
| Housing material | Die-cast zinc (black, powder-coated) |
| Weight | 102 g |
| Protection class (electrical) | III, Operation on safety extra-low voltage |
| Design | Cuboid |
| Special features | Radialer Steckerabgang |
| Switching output | Push-pull (1x), 100 mA, NO/NC |
| Switching function | Normally open (NO), Normally closed (NC) |
| Voltage drop (max.) | 2 V |
| Interface | IO-Link V1.1, COM2, Smart Sensor Profile |
| Light source | Laser |
| Wavelength | 650 nm |
| Detection range | 50 … 500 mm |
| Indicator | LED green - Status, yellow - switching output, red - weak signal |
| Switching frequency | 100 Hz (max. 600 Hz in sensor mode Speed without filter) |
| Operating temperature | 0 … +50 °C |
| Ingress protection | IP67 |
| Connection | Connector, M12, 4-pin |
