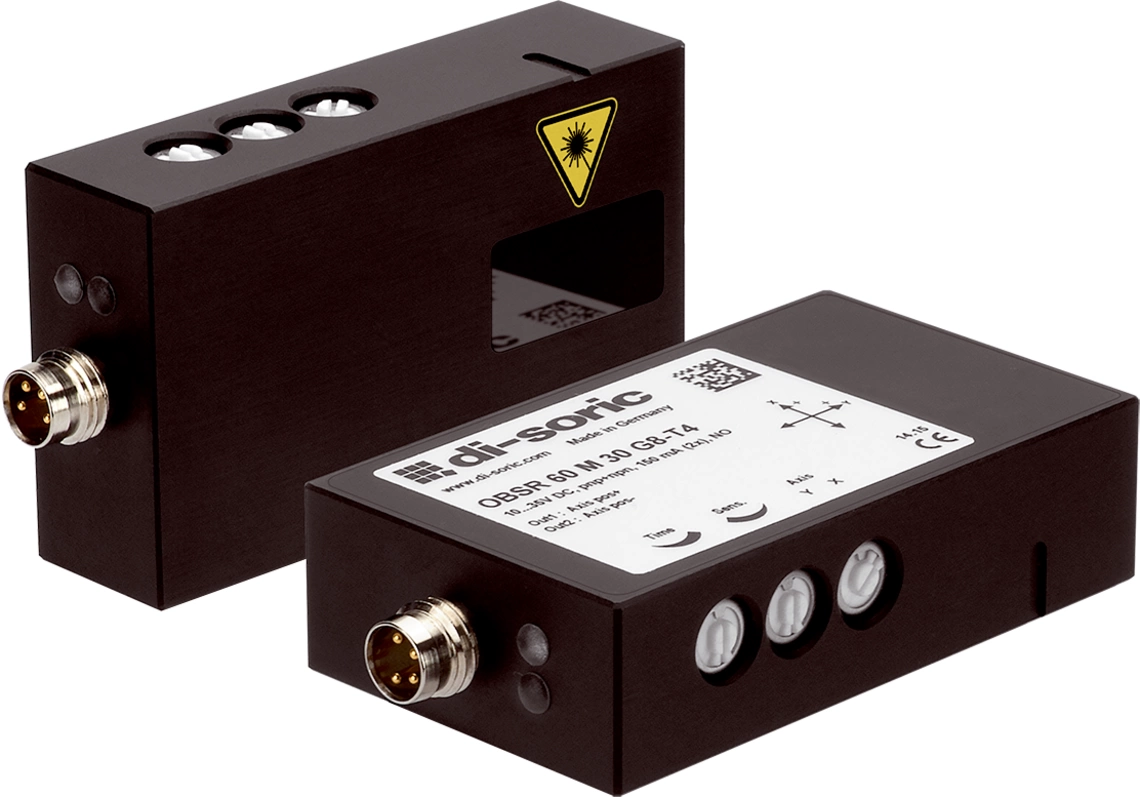

di-soric OBSR-60-M-30-G8-T4
- Operating principle:
- Optical
- Design:
- Cuboid
- Switching distance:
- 20 … 40 mm
- Switching output:
- Push-pull (2x), 150 mA
- Light source:
- Laser
- Supply voltage:
- 10 … 30 V DC
- Connection:
- Connector, M8
Price and availability on request
Not sure which model fits?
A technical contact will review your application and recommend the right configuration.
Have your application reviewedDescription
The OBS optical motion sensors are used for the non-contact detection of motion and direction of motion at close range. The sensors have a detection range from 20 mm to 40 mm. They can distinguish between motion and standstill and optionally detect the direction of motion. The standstill speed of up to 5 m/s is set simply by potentiometer.
- Direction detection
- Switchable between X and Y axis
- For non-contact feed monitoring
- Detection of metallic, non-metallic and glossy surfaces
- Two switching outputs
- Rugged metal housing
- High degree of protection
Technical data
| Part number | OBSR-60-M-30-G8-T4 |
|---|---|
| Operating principle | Optical |
| Supply voltage | 10 … 30 V DC |
| Idle current (max.) | 30 mA |
| Isolation voltage | 500 V |
| Housing material | Aluminium (black, anodized) |
| Protection class (electrical) | III, Operation on safety extra-low voltage |
| Evaluation | digital |
| Design | Cuboid |
| Special features | Richtungserkennung, X- or Y-Achse switchable |
| Switching output | Push-pull (2x), 150 mA |
| Voltage drop (max.) | 2.5 V |
| Light source | Laser |
| Wavelength | 850 nm |
| Switching distance | 20 … 40 mm |
| Switching hysteresis (max.) | Fest 16 % max. 0.1 m/s |
| Indicator | LED (2x) yellow - switching output |
| Response time | 10 ms |
| Operating temperature | +5 … +45 °C |
| Ingress protection | IP67 |
| Connection | Connector, M8, 4-pin |
