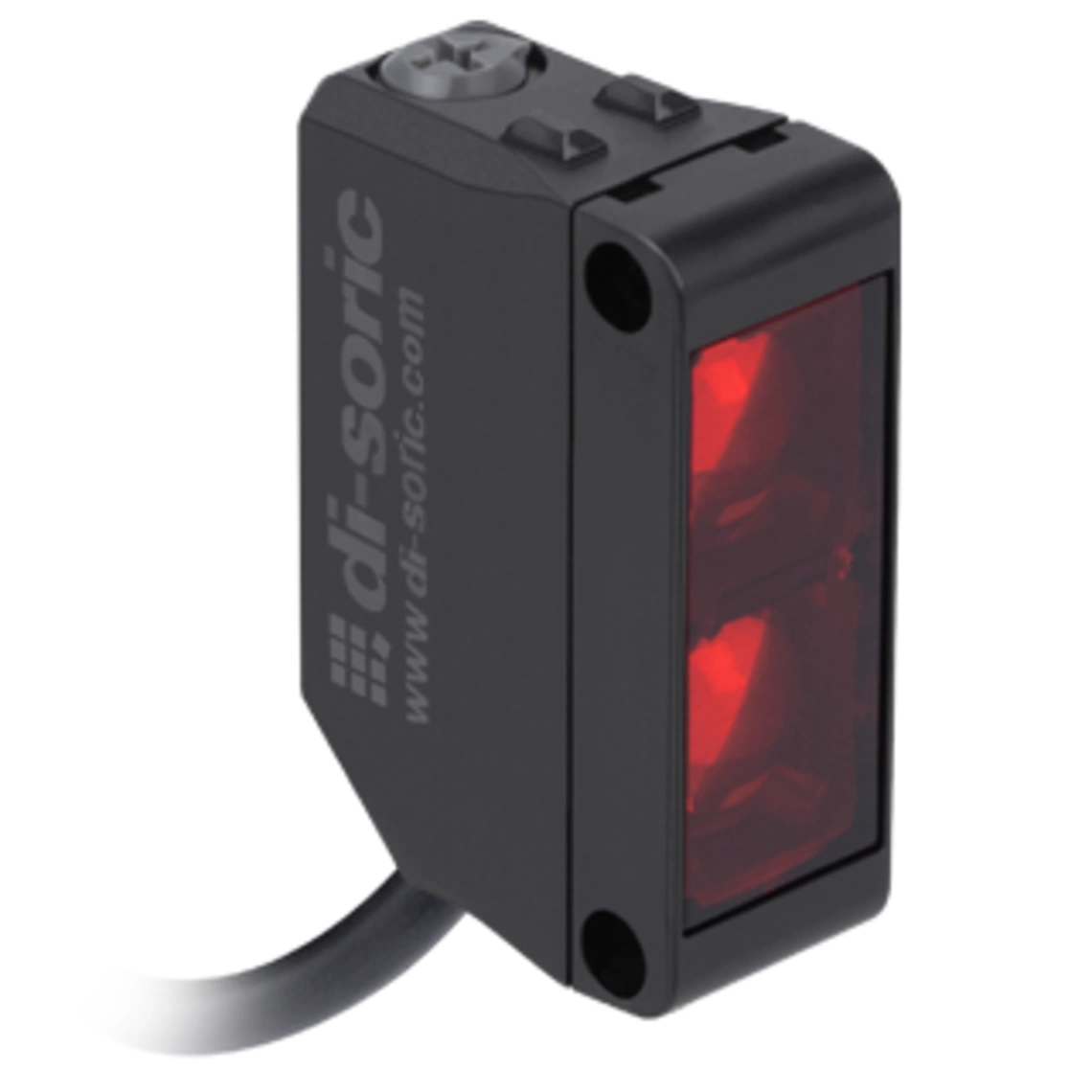

di-soric OE33-IMN-PT-P4-2C
- Operating principle:
- Optical
- Design:
- Cuboid
- Detection range:
- 0 … 15000 mm
- Switching output:
- pnp, 100 mA, antivalent
- Supply voltage:
- 10 … 30 V DC
- Connection:
- Cable, 2.0 m
- Ingress protection:
- IP 67
Price and availability on request
Not sure which model fits?
A technical contact will review your application and recommend the right configuration.
Have your application reviewedDescription
The compact light barriers and diffuse sensors of the O-33 series in a rugged plastic housing with an IO-Link interface solve even the most demanding detection tasks reliably and precisely. Many sensors have an IO-Link interface and are available with either powerful laser or LED light sources, which provide a long range and a high functional reserve.
- Compact design
- Long range
- High functional reserve
- Functional reserve indicator
- Antivalent output
Technical data
| Part number | OE33-IMN-PT-P4-2C |
|---|---|
| Operating principle | Optical |
| Supply voltage | 10 … 30 V DC |
| Idle current (max.) | < 25 mA |
| Reverse polarity protection | Yes |
| Short-circuit protection | Yes |
| Housing length | 20 mm |
| Housing material | Plastic |
| Cable material | PVC |
| Material | Plastic (window / optics) |
| Weight | 50 g |
| Protection class (electrical) | III |
| Evaluation | digital |
| Design | Cuboid |
| Switching output | pnp, 100 mA, antivalent |
| Voltage drop (max.) | 2 V |
| Detection range | 0 … 15000 mm |
| Indicator | LED green - Status, yellow - switching output |
| Switching frequency | 500 Hz |
| Operating temperature | -25 … +60 °C |
| Ingress protection | IP67 |
| Connection | Cable, 2.0 m, 4-pin (offenes Ende) |
Documents
- Download datasheet
Datasheet di-soric OE33-IMN-PT-P4-2C
Datasheet · DE · 1099 KB
