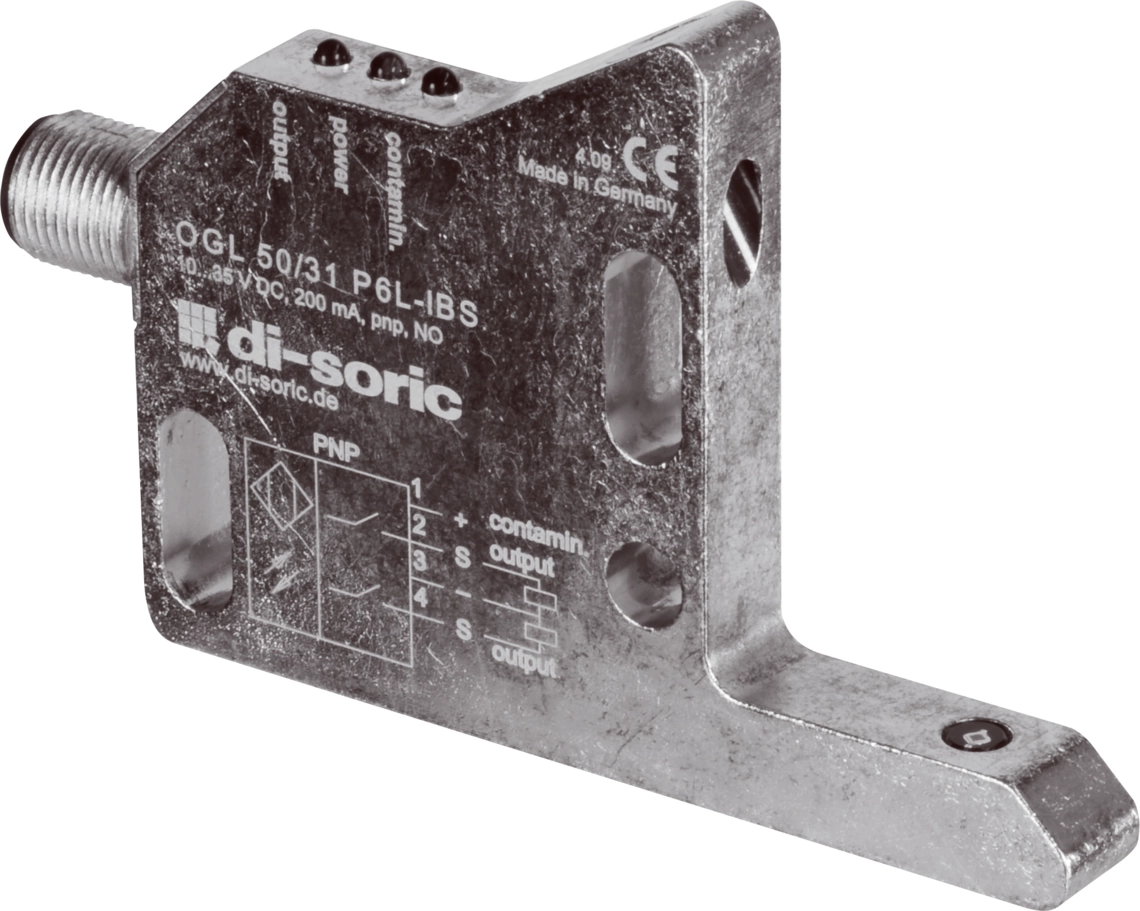

di-soric OGL-5031-P6L-IBS
- Operating principle:
- Optical
- Design:
- Winkel
- Detection range:
- 40 mm
- Switching output:
- pnp, 200 mA, NO
- Light source:
- LED
- Supply voltage:
- 10 … 35 V DC (Supply Class 2)
- Connection:
- Connector, M12
Price and availability on request
Not sure which model fits?
A technical contact will review your application and recommend the right configuration.
Have your application reviewedDescription
di-soric's high-performance angle light barriers have an increased functional reserve. On devices with a contamination indicator, cleaning cycles are reduced to a minimum.
- Intelligent contamination output with LED indicator
- High functional reserve
- Extremely insensitive to dirt
- Optical axis can be positioned in the x, y and z directions
- Universal mounting
- Sturdy metal housing
Technical data
| Part number | OGL-5031-P6L-IBS |
|---|---|
| Operating principle | Optical |
| Supply voltage | 10 … 35 V DC (Supply Class 2) |
| Idle current (max.) | 45 mA |
| Isolation voltage | 500 V |
| Housing length | 83 mm |
| Housing material | Die-cast zinc |
| Protection class (electrical) | III, Operation on safety extra-low voltage |
| Evaluation | digital |
| Design | Winkel |
| Special features | High transmission power and dirt penetration |
| Switching output | pnp, 200 mA, NO |
| Switching function | Normally open (NO) |
| Voltage drop (max.) | 2 V |
| Light source | LED |
| Wavelength | 660 nm |
| Detection range | 40 mm (optische Achse) |
| Switching frequency | 200 Hz |
| Operating temperature | -10 … +60 °C |
| Ingress protection | IP67 |
| Connection | Connector, M12, 4-pin |
