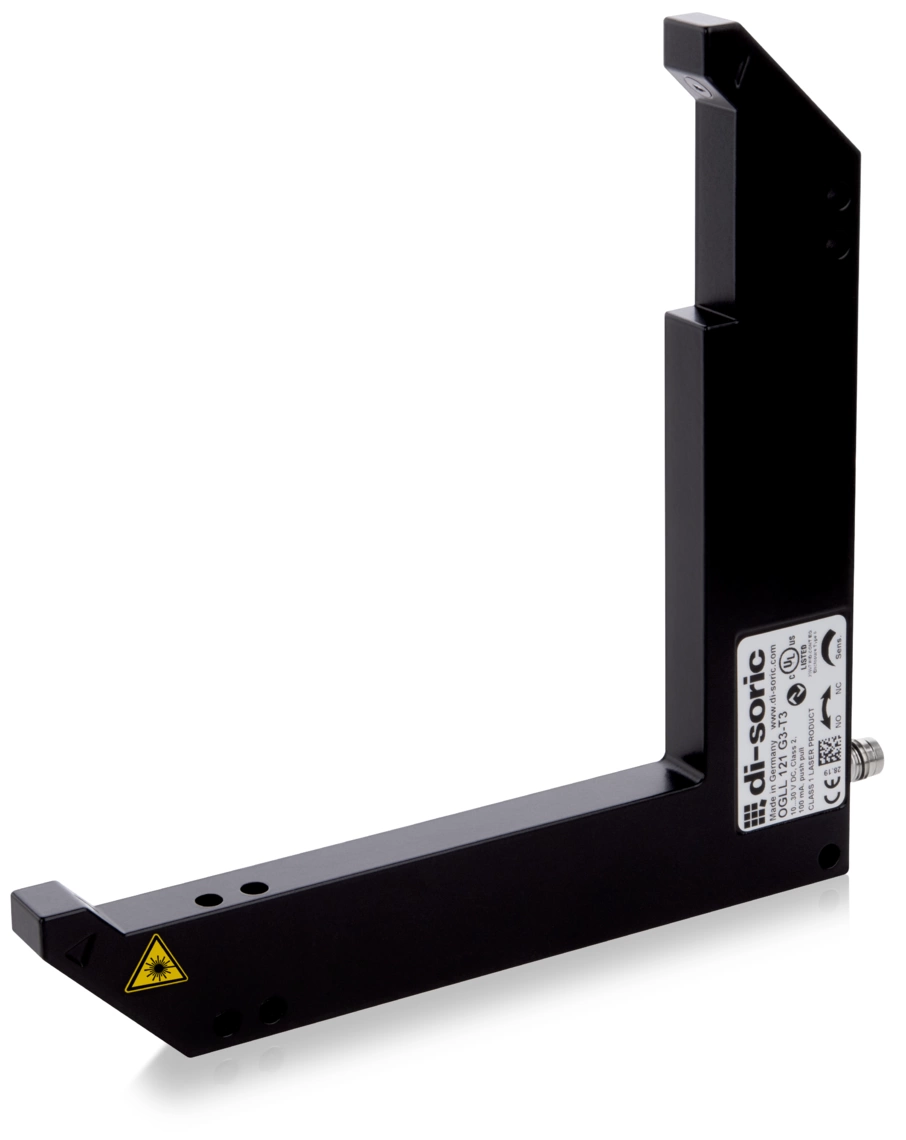

di-soric OGLL-121-G3-T3

Operating principle:: Optical
Design:: Winkel
Detection range:: 158 mm
Switching output:: Push-pull, 100 mA, NO/NC, switchable
Light source:: Laser
Supply voltage:: 10 … 30 V DC
Connection:: Connector, M8

Price and availability on request

Not sure which model fits?

A technical contact will review your application and recommend the right configuration.

Have your application reviewed

Description

The OGLL laser angle light barrier is particularly suitable for detecting small parts from 0.05 mm. Collimated red laser light achieves a high accuracy of the switching point between emitter and receiver across the entire fork width. The devices work with a pulsed red laser of eye-safe laser class 1. The clearly visible, small laser spot allows the sensor to be aligned to the object quickly even in bright ambient light.

- IO-Link

- 4 operating modes as IO-Link parameters

- Switch-on and switch-off delay as IO-Link parameters

- Diagnostics via IO-Link

- Metal housing

- Integrated electronics

- Adjustable sensitivity

- High switching frequency

- Light-on / dark-on switching

- Bright ring LED

Technical data

Part number	OGLL-121-G3-T3
Operating principle	Optical
Supply voltage	10 … 30 V DC
Idle current (max.)	30 mA
Isolation voltage	500 V
Housing length	150 mm
Housing material	Die-cast zinc (black, powder-coated)
Weight	270 g
Protection class (electrical)	III, Operation on safety extra-low voltage
Evaluation	digital
Design	Winkel
Switching output	Push-pull, 100 mA, NO/NC, switchable
Switching function	Normally open (NO), Normally closed (NC)
Voltage drop (max.)	1 V
Interface	IO-Link (V1.1, COM2 (38.4 kBd), Smart Sensor Profile)
Light source	Laser
Wavelength	655 nm
Detection range	158 mm (optische Achse)
Operating temperature	-25 … +60 °C
Ingress protection	IP67
Connection	Connector, M8, 3-pin

Documents

Datasheet di-soric OGLL-121-G3-T3
Datasheet · DE · 1244 KB
Download datasheet
