di-soric

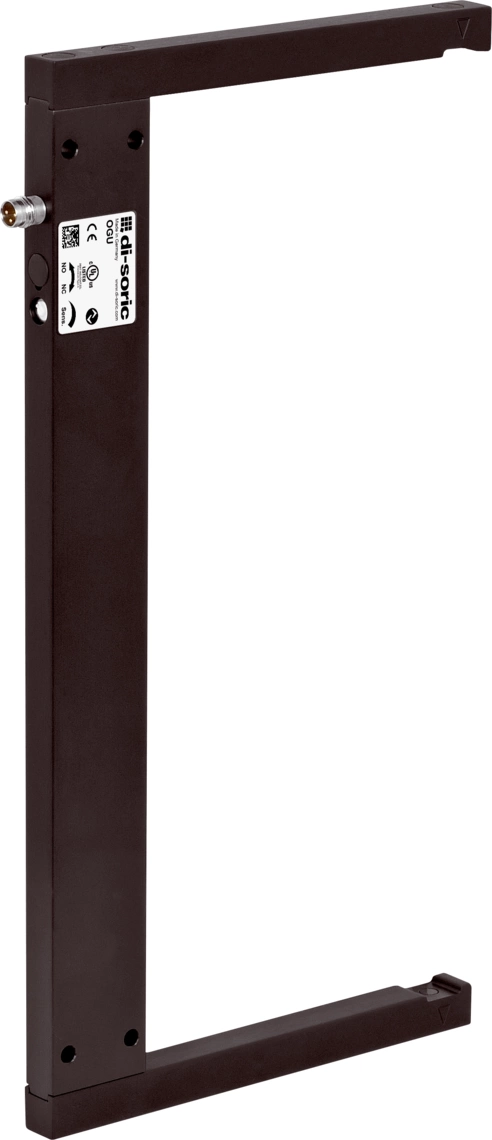

di-soric OGU-251-G3-T3
- Operating principle:
- Optical
- Design:
- Fork
- Switching output:
- Push-pull, 100 mA, NO/NC, switchable
- Light source:
- LED
- Supply voltage:
- 10 … 30 V DC
- Connection:
- Connector, M8
- Ingress protection:
- IP 67
Price and availability on request
Not sure which model fits?
A technical contact will review your application and recommend the right configuration.
Have your application reviewedDescription
The OGU series with an LED light source is the standard among fork light barriers. The largest fork light barrier range on the market includes devices with fork widths from 5 to 250 mm. OGU fork light barriers offer high resolution and repeatability at outstanding speed. They are set intuitively using a potentiometer, teach-in or IO-Link. Four preset operating modes allow the sensor to be matched precisely to the application, while IO-Link provides important advantages for configuration and diagnostics.
More information
- 4 operating modes as IO-Link parameters
- Switch-on and switch-off delay as IO-Link parameters
- Diagnostics via IO-Link
- Metal housing
- Adjustable sensitivity
- High switching frequency
- Light-on / dark-on switching
- Bright ring LED
- High degree of protection
Technical data
| Part number | OGU-251-G3-T3 |
|---|---|
| Operating principle | Optical |
| Supply voltage | 10 … 30 V DC |
| Idle current (max.) | 30 mA |
| Isolation voltage | 500 V |
| Housing length | 140 mm |
| Housing material | Aluminium (black, anodized) |
| Protection class (electrical) | III, Operation on safety extra-low voltage |
| Evaluation | digital |
| Design | Fork |
| Switching output | Push-pull, 100 mA, NO/NC, switchable |
| Switching function | Normally open (NO), Normally closed (NC) |
| Interface | IO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile) |
| Light source | LED |
| Operating temperature | -25 … +60 °C |
| Ingress protection | IP67 |
| Connection | Connector, M8, 3-pin |
Documents
- Download datasheet
Datasheet di-soric OGU-251-G3-T3
Datasheet · DE · 1508 KB
