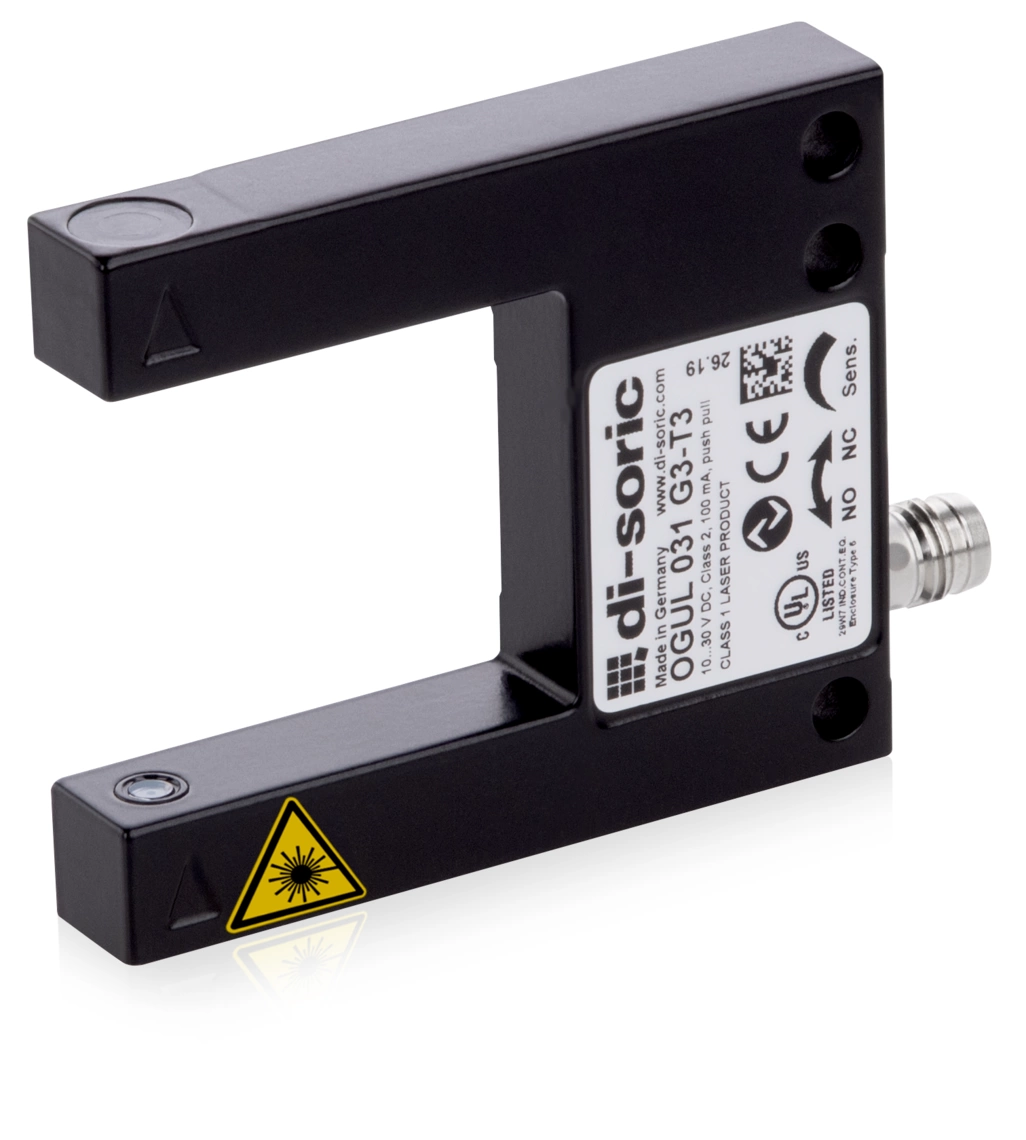

di-soric OGUL-031-G3-T3
- Operating principle:
- Optical
- Design:
- Fork
- Switching output:
- Push-pull, 100 mA, NO/NC
- Light source:
- Laser
- Supply voltage:
- 10 … 30 V DC
- Connection:
- Connector, M8
- Ingress protection:
- IP 67
Price and availability on request
Not sure which model fits?
A technical contact will review your application and recommend the right configuration.
Have your application reviewedDescription
The OGUL series is particularly suitable for detecting small parts from 0.05 mm. The use of collimated red laser light achieves a high accuracy of the switching point between emitter and receiver across the entire fork width. The devices work with a pulsed red laser of eye-safe laser class 1. The clearly visible, small laser spot allows the sensor to be aligned to the object quickly even in bright ambient light.
More information
- Light-on / dark-on switching
- IO-Link
- 4 operating modes as IO-Link parameters
- Switch-on and switch-off delay as IO-Link parameters
- Diagnostics via IO-Link
- Metal housing
- Integrated electronics
- High switching frequency
- Bright ring LED
- High degree of protection
Technical data
| Part number | OGUL-031-G3-T3 |
|---|---|
| Operating principle | Optical |
| Supply voltage | 10 … 30 V DC |
| Idle current (max.) | 30 mA |
| Isolation voltage | 500 V |
| Housing length | 60 mm |
| Housing material | Die-cast zinc (black, powder-coated) |
| Weight | 68 g |
| Protection class (electrical) | III, Operation on safety extra-low voltage |
| Evaluation | digital |
| Design | Fork |
| Switching output | Push-pull, 100 mA, NO/NC |
| Switching function | Normally open (NO), Normally closed (NC) |
| Voltage drop (max.) | 1 V |
| Interface | IO-Link (V1.1, COM2 (38.4 kBd), Smart Sensor Profile) |
| Light source | Laser |
| Wavelength | 655 nm |
| Operating temperature | -25 … +60 °C |
| Ingress protection | IP67 |
| Connection | Connector, M8, 3-pin |
