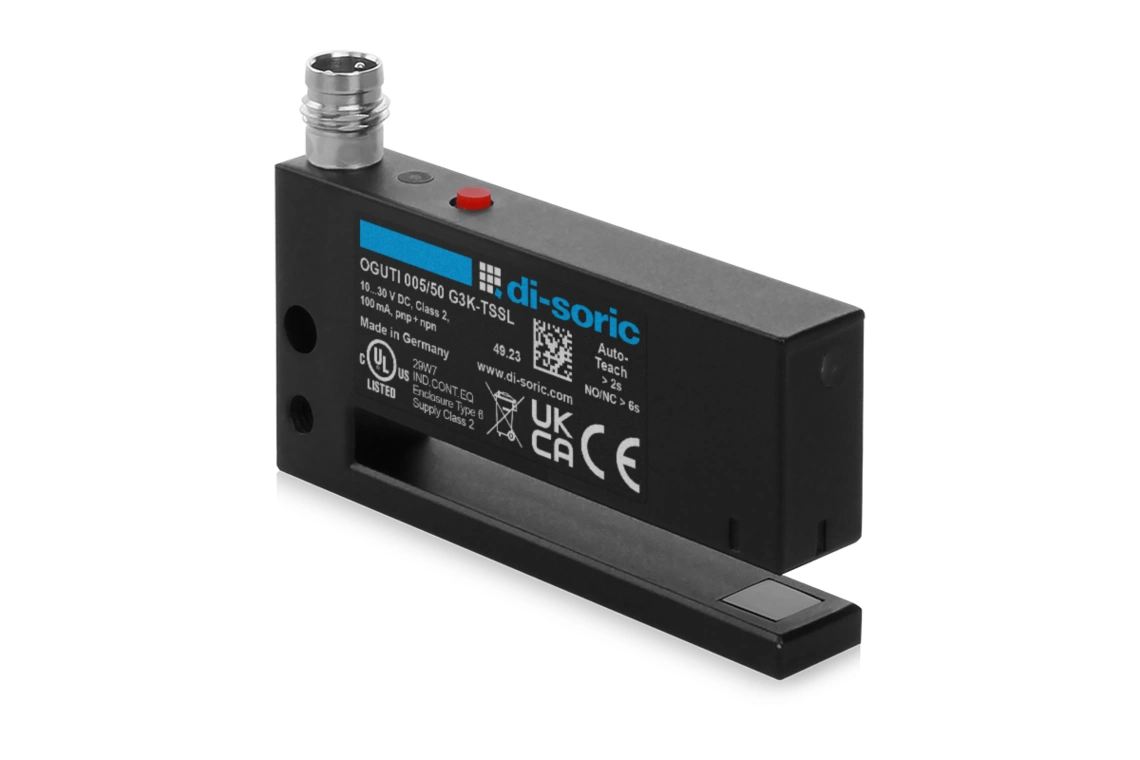

di-soric OGUTI-00550-G3K-TSSL
- Operating principle:
- Optical
- Design:
- Fork
- Switching output:
- Push-pull, 100 mA, NO/NC, switchable
- Light source:
- LED
- Supply voltage:
- 10 … 30 V DC (Supply Class 2)
- Connection:
- Connector, M8
- Ingress protection:
- IP 67
Price and availability on request
Not sure which model fits?
A technical contact will review your application and recommend the right configuration.
Have your application reviewedDescription
OGUTI optical label sensors are the economical solution for detecting paper labels. They are characterized by the highest dispensing precision and repeatability and enable maximum web speeds. Using auto-teach, they can be taught in to new materials intuitively and quickly.
- Fast, simple, reliable: sensitivity set via the teach key
- Auto-teach during the running process
- Teach-in process signaled by LED
- Detection of a wide variety of labels
- Large functional reserve
- Can be integrated into the label dispensing edge
Technical data
| Part number | OGUTI-00550-G3K-TSSL |
|---|---|
| Operating principle | Optical |
| Supply voltage | 10 … 30 V DC (Supply Class 2) |
| Idle current (max.) | 35 mA |
| Isolation voltage | 500 V |
| Housing length | 60 mm |
| Housing material | Die-cast zinc (black, painted) |
| Protection class (electrical) | III, Operation on safety extra-low voltage |
| Evaluation | digital |
| Design | Fork |
| Product series | OGUTI optical |
| Switching output | Push-pull, 100 mA, NO/NC, switchable |
| Switching function | Normally open (NO), Normally closed (NC) |
| Voltage drop (max.) | 2 V |
| Light source | LED |
| Wavelength | 880 nm |
| Switching hysteresis (max.) | 0.15 mm |
| Switching frequency | 3000 Hz |
| Operating temperature | -10 … +60 °C |
| Ingress protection | IP67 |
| Connection | Connector, M8, 3-pin |
