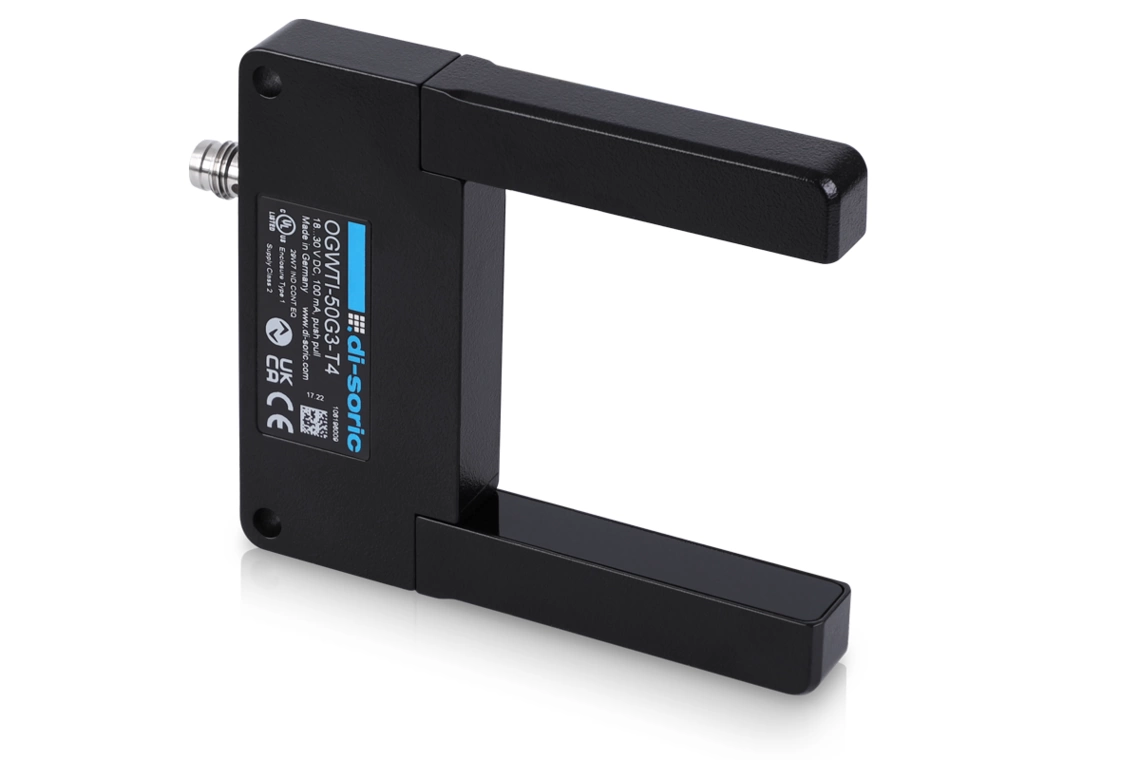

di-soric OGWTI-50G3-T4

Operating principle:: Optical
Design:: Fork
Detection range:: 50 x 50 mm
Switching output:: Push-pull, 100 mA, NO/NC, switchable
Light source:: LED
Supply voltage:: 18 … 30 V DC
Connection:: Connector, M8

Price and availability on request

Not sure which model fits?

A technical contact will review your application and recommend the right configuration.

Have your application reviewed

Description

OGWTI series frame light barriers have an open fork design and detect objects within an area of up to 100 x 100 mm. Their compact design makes the devices ideal for integration into machines. The OGWTI has a rugged metal housing and is operated intuitively via a keypad. IO-Link provides advantages for configuration and diagnostics.

- IO-Link

- Fork design

- Rugged metal housing

- Compact design

- High resolution

- Short response time

- Intuitive teach-in via membrane keypad, with fine adjustment

- Operating principle: dynamic or static

- 4 operating modes as IO-Link parameters

Technical data

Part number	OGWTI-50G3-T4
Operating principle	Optical
Supply voltage	18 … 30 V DC
Idle current (max.)	< 45 mA
Reverse polarity protection	Yes
Short-circuit protection	Yes
Housing length	86 mm
Housing material	Die-cast zinc (black, powder-coated)
Material	Plastic (Fenster)
Weight	130 g
Evaluation	Schaltend, Dynamisch/statisch switchable
Design	Fork
Switching output	Push-pull, 100 mA, NO/NC, switchable
Switching function	Normally open (NO), Normally closed (NC)
Voltage drop (max.)	2 V
Interface	IO-Link V1.1.3, COM2 (Smart Sensor Profile), 2nd Edition V1.1 SSP 4.1.1
Light source	LED
Detection range	50 x 50 mm
Indicator	LED green - Status, yellow - switching output 1, white - statisch/dynamisch, yellow/red - switching output 2 / warning
Response time	0.05 ms
Operating temperature	-10 … +60 °C
Ingress protection	IP67
Connection	Connector, M8, 4-pin
