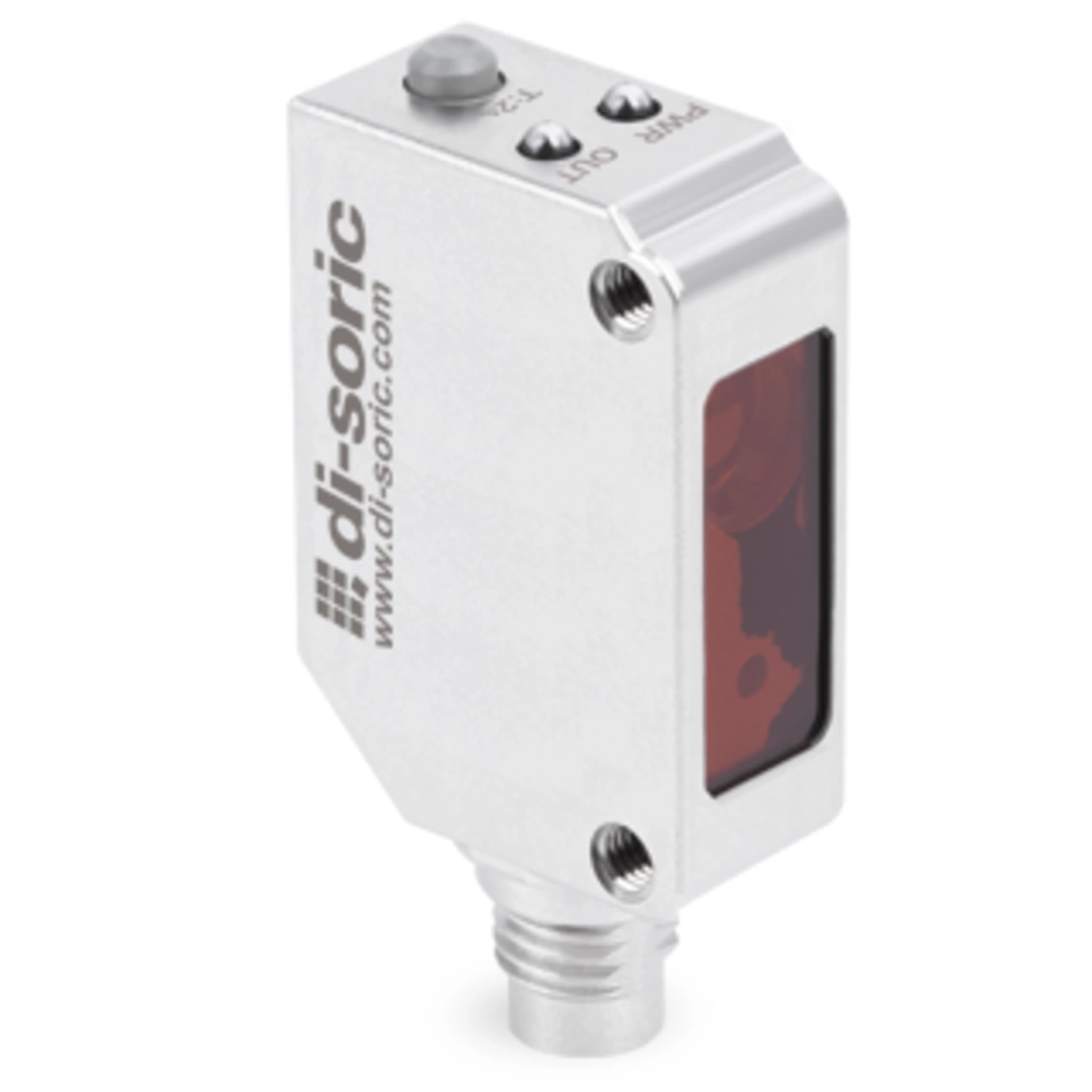

di-soric OH34-LRMS-TI-G3-T4
- Operating principle:
- Optical
- Design:
- Cuboid
- Detection range:
- 20 … 100 mm
- Switching output:
- Push-pull, 100 mA, NO/NC, switchable
- Light source:
- Laser
- Supply voltage:
- 10 … 30 V DC
- Connection:
- Connector, M8
Price and availability on request
Not sure which model fits?
A technical contact will review your application and recommend the right configuration.
Have your application reviewedDescription
The compact light barriers and diffuse sensors of the O-34 series in a rugged stainless steel housing are waterproof to IP69K and chemically resistant, and solve even the most demanding detection tasks reliably and precisely. Many sensors have an IO-Link interface and are available with either powerful laser or LED light sources, which provide a long range and a high functional reserve.
- Compact stainless steel housing
- Degree of protection IP 69K
- ECOLAB approval
- Small detection angle
- Ideal background suppression
- Red laser light with a small light spot
- DD mode, evaluates intensity and distance simultaneously
- Push-pull output with pnp or npn function
- Switchable light-on / dark-on switching
- IO-Link
- Sensing distance and window function configurable in mm
Technical data
| Part number | OH34-LRMS-TI-G3-T4 |
|---|---|
| Operating principle | Optical |
| Supply voltage | 10 … 30 V DC |
| Idle current (max.) | < 30 mA |
| Reverse polarity protection | Yes |
| Short-circuit protection | Yes |
| Housing length | 21 mm |
| Housing material | Stainless steel |
| Material | Plastic (window / optics) |
| Weight | 65 g |
| Protection class (electrical) | III |
| Evaluation | digital |
| Design | Cuboid |
| Switching output | Push-pull, 100 mA, NO/NC, switchable |
| Switching function | Normally open (NO), Normally closed (NC) |
| Voltage drop (max.) | 1 V |
| Interface | IO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile) |
| Light source | Laser |
| Wavelength | 650 nm |
| Detection range | 20 … 100 mm |
| Standard target | 200 x 200 mm |
| Indicator | LED green - Status, yellow - switching output 1 |
| Switching frequency | 350 Hz … 800 Hz (350 Hz (HOHE FUNKTIONSSICHERHEIT), 800 Hz (GESCHWINDIGKEIT)) |
| Operating temperature | -25 … +60 °C |
| Ingress protection | IP67 |
| Connection | Connector, M8, 4-pin |
