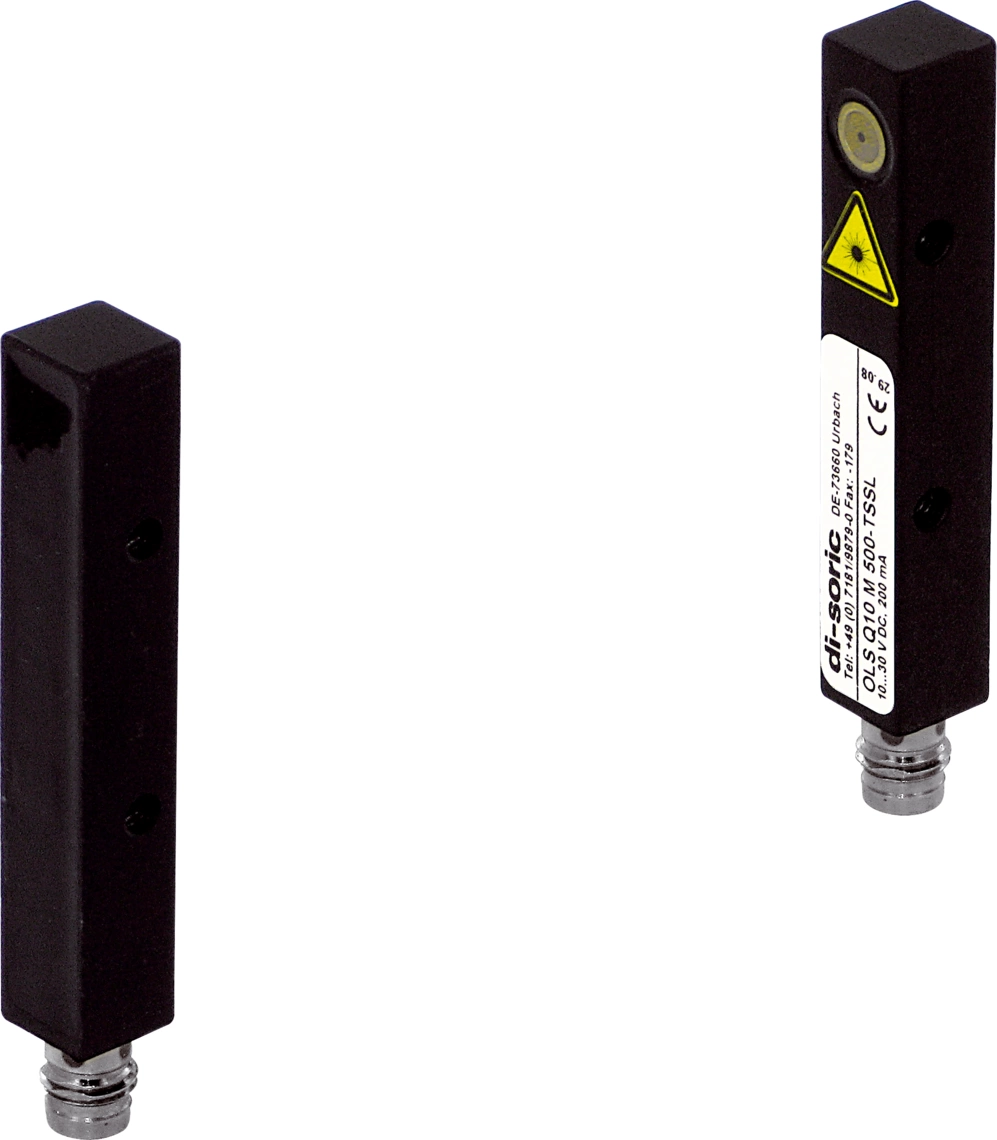

di-soric OLS-Q10-M-500-TSSL
- Operating principle:
- Optical
- Design:
- Cuboid
- Detection range:
- 0 … 500 mm
- Light source:
- Laser
- Supply voltage:
- 10 … 35 V DC
- Connection:
- Connector, M8
- Ingress protection:
- IP 67
Price and availability on request
Not sure which model fits?
A technical contact will review your application and recommend the right configuration.
Have your application reviewedDescription
The devices of the O-Q10 Miniature series are the first choice for applications that call for compact through-beam laser light barriers to detect small parts. The rugged devices with a metal housing and metal connector all meet the requirements of safe laser class 1.
- Collimated red laser
- Visible laser spot
- Compact design
- Rugged metal housing
Technical data
| Part number | OLS-Q10-M-500-TSSL |
|---|---|
| Operating principle | Optical |
| Supply voltage | 10 … 35 V DC |
| Idle current (max.) | 30 mA |
| Isolation voltage | 500 V |
| Housing length | 10 mm |
| Housing material | Die-cast zinc (black, painted) |
| Material | Glas (Fenster) |
| Protection class (electrical) | III, Operation on safety extra-low voltage |
| Evaluation | digital |
| Design | Cuboid |
| Voltage drop (max.) | 2.5 V |
| Light source | Laser |
| Wavelength | 650 nm |
| Detection range | 0 … 500 mm |
| Switching frequency | 2000 Hz |
| Operating temperature | 0 … +50 °C |
| Ingress protection | IP67 |
| Connection | Connector, M8, 3-pin |
