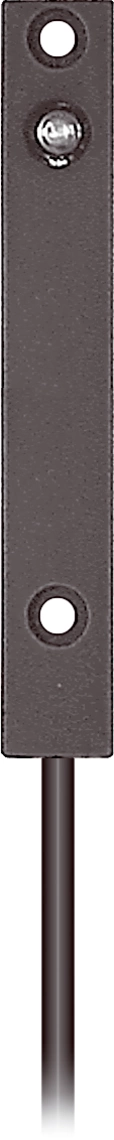

di-soric OSPQ-12-MHFL-5M
- Operating principle:
- Optical
- Design:
- Cuboid
- Detection range:
- 0 … 50000 mm
- Light source:
- LED
- Supply voltage:
- 10 … 35 V DC
- Connection:
- Cable, 5.0 m
- Ingress protection:
- IP 67
Price and availability on request
Not sure which model fits?
A technical contact will review your application and recommend the right configuration.
Have your application reviewedDescription
The M12 cuboid design consists of an emitter and a receiver in a compact housing with a shallow mounting depth. Thanks to the rugged metal housing, the systems are insensitive to vibration and shock and therefore do not need to be readjusted constantly.
- Long range
- Transmission power adjustable with an external resistor
- High functional reserve
- Extremely insensitive to dirt
- Easy alignment
- Different designs can be combined
- High degree of protection
- Compact design
Technical data
| Part number | OSPQ-12-MHFL-5M |
|---|---|
| Operating principle | Optical |
| Supply voltage | 10 … 35 V DC |
| Idle current (max.) | 55 mA |
| Housing length | 82 mm |
| Housing material | Aluminium (anodized) |
| Cable material | PVC |
| Protection class (electrical) | III, Operation on safety extra-low voltage |
| Evaluation | digital |
| Design | Cuboid |
| Special features | High transmission power and dirt penetration |
| Light source | LED |
| Wavelength | 870 nm |
| Detection range | 0 … 50000 mm (depending on the receiver) |
| Operating temperature | -20 … +60 °C |
| Ingress protection | IP67 |
| Connection | Cable, 5.0 m |
