di-soric

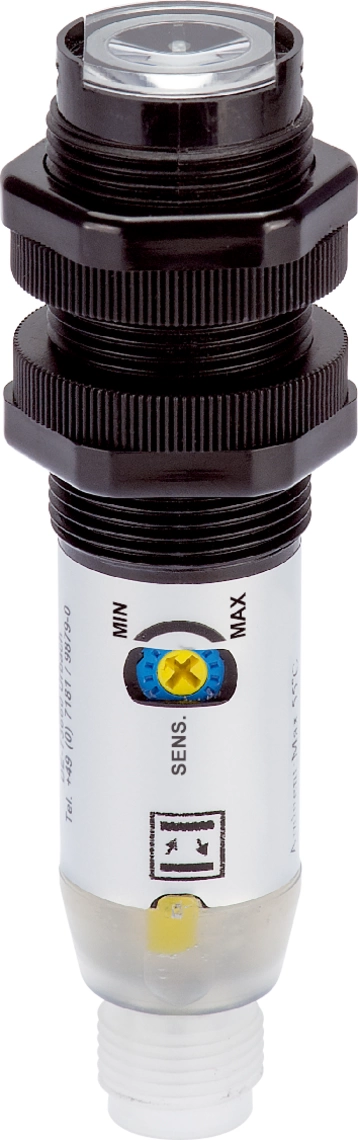

di-soric OT-18-K-30-P3-B4
- Operating principle:
- Optical
- Design:
- Threaded barrel
- Detection range:
- 10 … 30 mm
- Switching output:
- pnp, 100 mA, NO/NC, programmierbar
- Light source:
- LED
- Supply voltage:
- 10 … 30 V DC
- Connection:
- Connector, M12
Price and availability on request
Not sure which model fits?
A technical contact will review your application and recommend the right configuration.
Have your application reviewedDescription
The light barriers and diffuse sensors of the O-M18 Standard series are ideal devices for economical, cost-efficient applications. The sensors are available either in a straight design or with 90° right-angle optics. The plastic or metal housing is characterized by its short design.
- Infrared light
- Adjustable sensitivity
- LED switching status indicator
- Rugged plastic housing
- High degree of protection
Technical data
| Part number | OT-18-K-30-P3-B4 |
|---|---|
| Operating principle | Optical |
| Supply voltage | 10 … 30 V DC |
| Idle current (max.) | 30 mA |
| Isolation voltage | 1000 V |
| Thread | M18 x 1 |
| Housing length | 80 mm |
| Housing material | Plastic |
| Material | PMMA (Fenster) |
| Protection class (electrical) | III, Operation on safety extra-low voltage |
| Evaluation | digital |
| Design | Threaded barrel |
| Switching output | pnp, 100 mA, NO/NC, programmierbar |
| Switching function | Normally open (NO), Normally closed (NC) |
| Light source | LED |
| Wavelength | 940 nm |
| Detection range | 10 … 30 mm (adjustable) |
| Standard target | 200 x 200 mm (white) |
| Switching frequency | 300 Hz |
| Response time | 2.0 ms |
| Operating temperature | -25 … +55 °C |
| Ingress protection | IP66 |
| Connection | Connector, M12, 4-pin |
Documents
- Download datasheet
Datasheet di-soric OT-18-K-30-P3-B4
Datasheet · DE · 3649 KB
