OPT
OPT-LPE2-040-01
Manufacturer part number: OPT-LPE2-040-01
Integrated 3D camera design—no external controller required, operates independently for simple and rapid deployment.
Price and availability on request
We quote the price individually per inquiry, based on configuration and quantity.
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedDescription

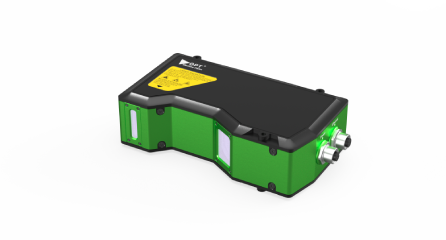

**OPT-LPE2-040-01** aus der Serie „Series LPE2“ von OPT Machine Vision.
**Produkthighlights**
- Integrated 3D camera design—no external controller required, operates independently for simple and rapid deployment. - Cost-effective with up to 3,200 profile points on the X-axis, delivering higher precision and finer reproduction of product contours. - Equipped with a high-performance chip and FPGA edge acceleration technology, achieving a maximum frame rate of 18 kHz to support high-speed point cloud data acquisition and output. - HDR functionality, combined with anti-vibration interference correction and post-processing algorithms, ensures superior contour accuracy and adaptability for scanning products with varying background colors. - Complete hardware-software solution—all 3D sensors are compatible with OPT's full-featured algorithm platform, Smart3, - enabling zero-code, visual graphical programming for fast deployment of 3D project applications. - Compliant with GigE Vision 2.0 protocol, GenICam standard, and certified for EMC and RoHS.
Technische Daten und Datenblatt siehe unten. Preis und Lieferzeit auf Anfrage.
Technical data
| Manufacturer part number | OPT-LPE2-040-01 |
|---|---|
| referencedistance(cd) | 406mm |
| z-axisrange(fs) | 354.465mm |
| x-axiswidthnearend | 168.669mm |
| x-axiswidthstandard | 223.598mm |
| x-axiswidthfarend | 331.221mm |
