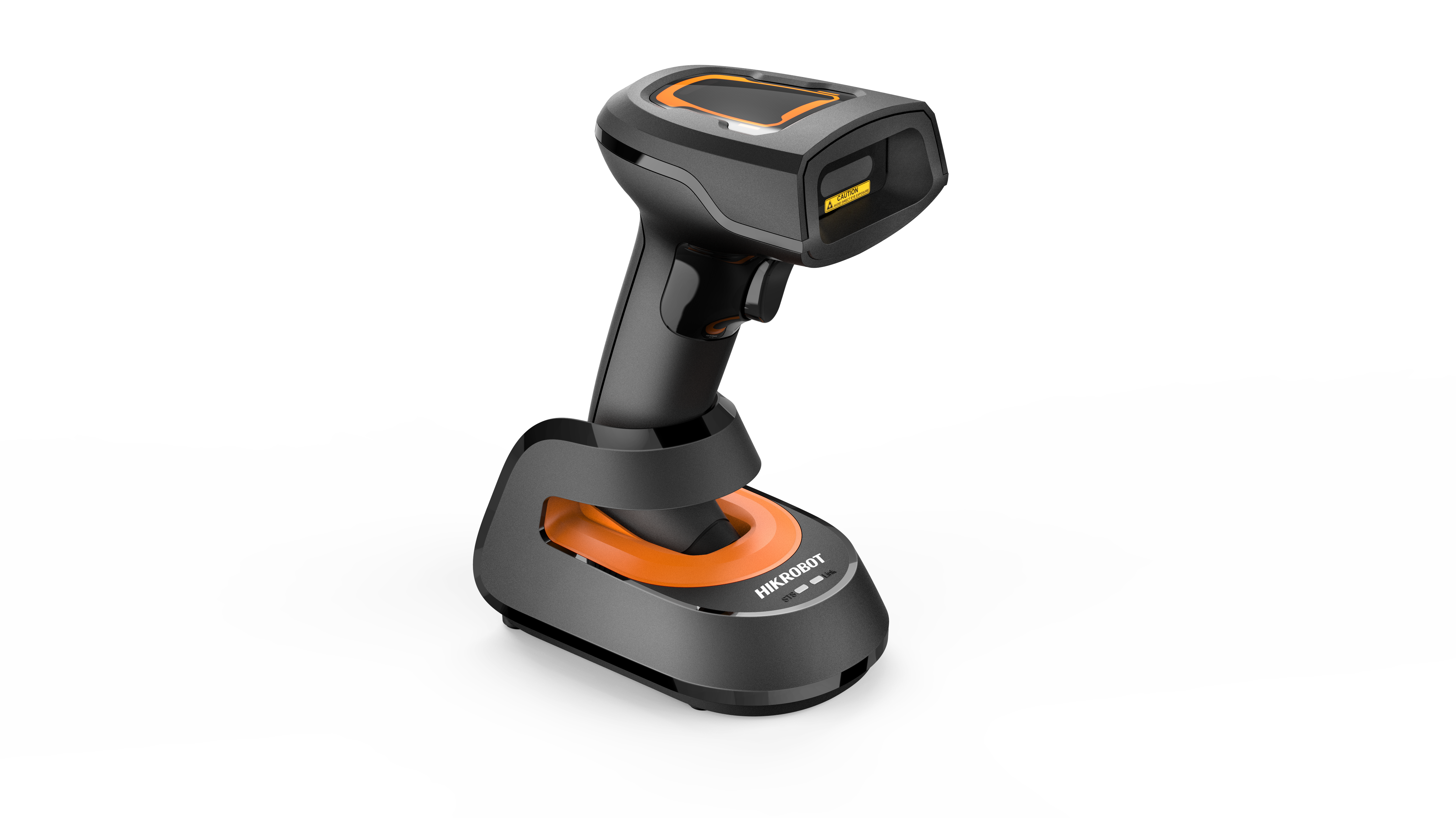

HIKROBOT Handscanner MV-IDH2000B/03SR/03WN/UC
HikRobot Handscanner MV-IDH2000B/03SR/03WN/UC ist ein Handscanner von HikRobot (Industrial wireless handheld code reader package).
Preis und Verfügbarkeit auf Anfrage
Unsicher bei der Auswahl?
Ein technischer Ansprechpartner prüft Ihre Anwendung und empfiehlt die passende Konfiguration.
Anwendung prüfen lassenBeschreibung
Key Feature
- Built-in code reading algorithm for decoding different types of 1D codes and 2D codes.
- Provides good robustness to read codes with spots, defects and low contrast ratio.
- Supports continuous code reading, batch code reading for improving code reading efficiency.
- Supports wireless communication via Bluetooth.
- Adopts 2700 mAh battery with long standby time.
- IP42 and drop height of 1.8 m.
Technische Daten
| Artikelnummer | MV-IDH2000B |
|---|---|
| Typ | Industrial wireless handheld code reader package |
| Codearten | 1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D codes: QR Code, Data Matrix, MicroQR, Aztec Stacked code: PDF417 |
| Min. accuracy | 4 mil |
| Sensortyp | CMOS |
| Auflösung | 640 × 480 |
| Schärfentiefe | EAN 13 (13 mil): 30 mm to 240 mm Code 39 (5 mil): 50 mm to 100 mm Code 128 (10 mil): 30 mm to 240 mm Data Matrix (10 mil): 40 mm to 130 mm QR Code (15 mil): 15 mm to 205 mm |
| Detection angle | Tilt angle ± 60°, skew angle ± 60°, rotation angle 360° |
| Sichtfeld | Horizontal 42°, vertical 32° |
| Symbol contrast | 20% |
| Communication mode | Bluetooth BT 5.1, BLE |
| Wireless range | 80 m (open range) |
| Kommunikationsprotokoll | SmartSDK, Bluetooth, USB |
| Schnittstelle | USB 2.0 (Type B) |
| Battery | 2700 mAh |
| Charging time | 6 h |
| Endurance | 12 h (interval scanning, once in 2 seconds) |
| Stromversorgung | 5 VDC |
| Current consumption | 1.5 A (max.), 0.14 A (during standby) |
| Brennweite | 3.1 mm |
| Umgebungslicht | 0 lux to 100000 lux |
| Lichtquelle | White LED |
| Zielsystem | Orange LED |
| Prompt | LED indicator, buzzer, vibrator |
| Abmessungen | 66.5 mm × 94 mm × 169.5 mm (2.6" × 3.7" × 6.7") |
| Gewicht | Approx. 160 g (0.4 lb.) |
| Schutzklasse | IP42 |
| Temperatur | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) Charging temperature: 0 °C to 40 °C (32 °F to 104 °F) |
| Luftfeuchtigkeit | 5% RH to 95% RH (no condensation) |
| Laser safety class | Laser 2 |
| Wellenlänge | 650 nm |
| Pulse width | 8 ms |
| Maximum power | 1 mW |
| Software | IDMVS |
| Zertifizierung | CE, KC |
| Schnittstelle | USB 2.0 (Type B), USB 2.0 (Type A) |
| Stromversorgung | 5 VDC |
| Abmessungen | 82.6 mm × 121.8 mm × 76.1 mm (3.3" × 4.8" × 3.0") |
| Gewicht | Approx. 120 g (0.3 lb.) |
| Schutzklasse | IP40 |
| Temperatur | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Luftfeuchtigkeit | 5% RH to 95% RH (no condensation) |
| Current consumption | 1.5 A (max.), 0.01 A (during standby) |
Dokumente
- Datenblatt herunterladen
Data Sheet HikRobot Handscanner MV-IDH2000B/03SR/03WN/UC
Datenblatt · EN · 660 KB
- Herunterladen
Firmware HikRobot Handscanner MV-IDH2000B/03SR/03WN/UC
Technische Zeichnung · EN · 38628 KB
- Herunterladen
Drawing HikRobot Handscanner MV-IDH2000B/03SR/03WN/UC
Technische Zeichnung · EN · 10176 KB
- Herunterladen
Industrial Protocol HikRobot Handscanner MV-IDH2000B/03SR/03WN/UC
Technische Zeichnung · EN · 7713 KB
- Herunterladen
User Manual HikRobot Handscanner MV-IDH2000B/03SR/03WN/UC
Handbuch · EN · 3678 KB
