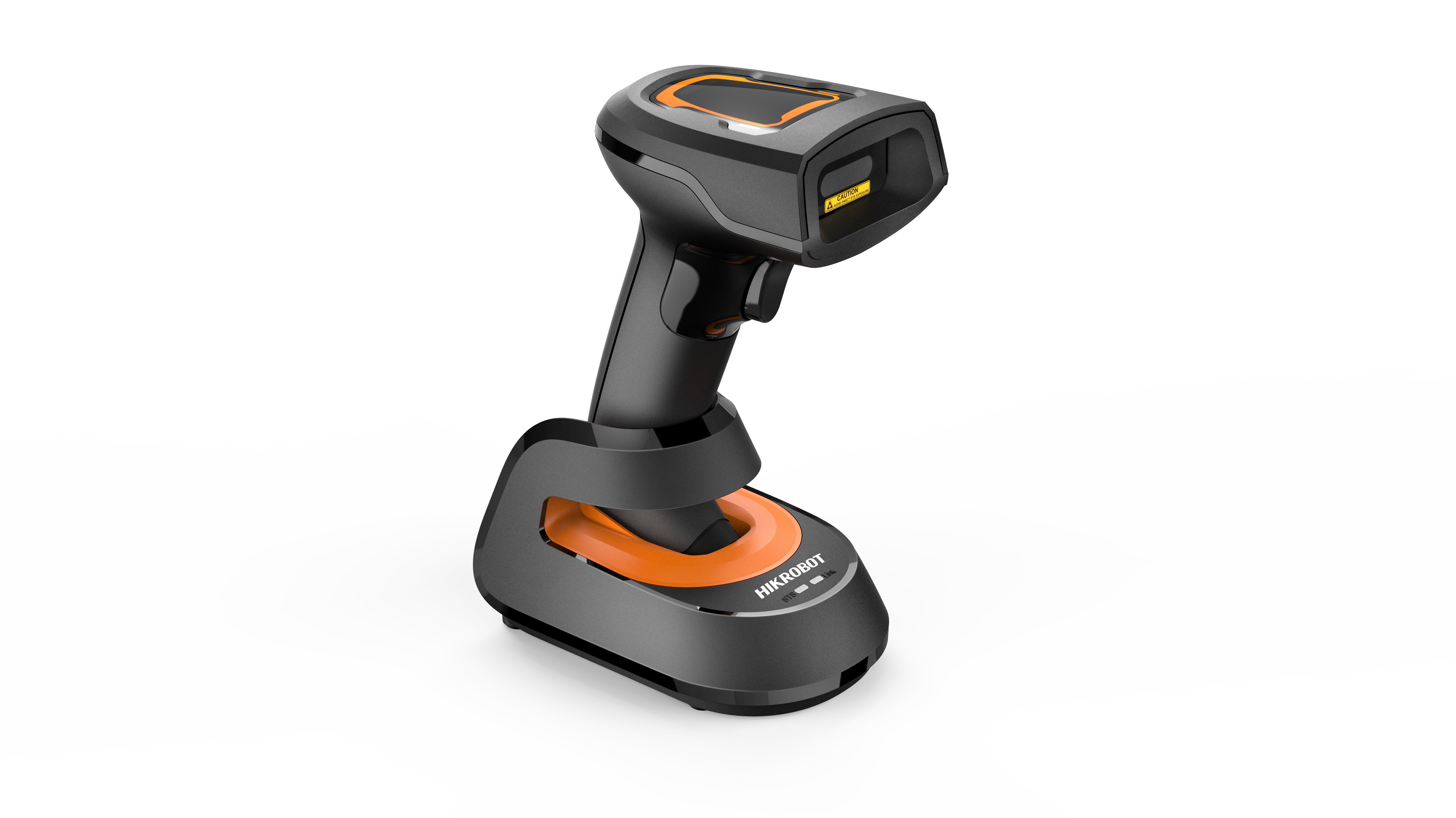

HIKROBOT Handscanner MV-IDH2000B/13NR/05WN/UC
HikRobot Handscanner MV-IDH2000B/13NR/05WN/UC ist ein Handscanner von HikRobot (Industrial wireless handheld code reader package).
Preis und Verfügbarkeit auf Anfrage
Unsicher bei der Auswahl?
Ein technischer Ansprechpartner prüft Ihre Anwendung und empfiehlt die passende Konfiguration.
Anwendung prüfen lassenBeschreibung
Key Feature
- Built-in code reading algorithm for decoding different types of 1D codes and 2D codes.
- Provides good robustness to read codes with spots, defects and low contrast ratio.
- Supports continuous code reading, batch code reading for improving code reading efficiency.
- Supports wireless communication via Bluetooth.
- Adopts 2700 mAh battery with long standby time.
- IP42 and drop height of 1.8 m.
Technische Daten
| Artikelnummer | MV-IDH2000B |
|---|---|
| Typ | Industrial wireless handheld code reader package |
| Codearten | 1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D codes: QR Code, Data Matrix, MicroQR, Aztec Stacked code: PDF417 |
| Min. accuracy | 1D codes: 3 mil 2D codes: 4 mil |
| Sensortyp | CMOS |
| Auflösung | 1280 × 1024 |
| Schärfentiefe | Code 128 (3 mil): 30 mm to 110 mm Code 128 (10 mil): 20 mm to 205 mm Data Matrix (5 mil): 40 mm to 85 mm QR Code (10 mil): 20 mm to 140 mm QR Code (20 mil): 20 mm to 200 mm |
| Detection angle | Tilt angle ± 60°, skew angle ± 60°, rotation angle 360° |
| Sichtfeld | Horizontal 39°, vertical 29° |
| Symbol contrast | 20% |
| Communication mode | Bluetooth BT 5.1, BLE |
| Wireless range | 80 m (open range) |
| Kommunikationsprotokoll | SmartSDK, Bluetooth, USB |
| Schnittstelle | USB 2.0 (Type B) |
| Battery | 2700 mAh |
| Charging time | 6 h |
| Endurance | 12 h (interval scanning, once in 2 seconds) |
| Stromversorgung | 5 VDC |
| Current consumption | 1.5 A (max.), 0.14 A (during standby) |
| Brennweite | 4.9 mm |
| Umgebungslicht | 0 lux to 100000 lux |
| Lichtquelle | White LED |
| Zielsystem | Cross laser aiming |
| Prompt | LED indicator, buzzer, vibrator |
| Abmessungen | 66.5 mm × 94 mm × 169.5 mm (2.6" × 3.7" × 6.7") |
| Gewicht | Approx. 160 g (0.4 lb.) |
| Schutzklasse | IP42 |
| Temperatur | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) Charging temperature: 0 °C to 40 °C (32 °F to 104 °F) |
| Luftfeuchtigkeit | 5% RH to 95% RH (no condensation) |
| Laser safety class | Laser 2 |
| Wellenlänge | 650 nm |
| Pulse width | 8 ms |
| Maximum power | 1 mW |
| Software | IDMVS |
| Zertifizierung | CE, KC |
| Schnittstelle | USB 2.0 (Type B), USB 2.0 (Type A) |
| Stromversorgung | 5 VDC |
| Abmessungen | 82.6 mm × 121.8 mm × 76.1 mm (3.3" × 4.8" × 3.0") |
| Gewicht | Approx. 120 g (0.3 lb.) |
| Schutzklasse | IP40 |
| Temperatur | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Luftfeuchtigkeit | 5% RH to 95% RH (no condensation) |
| Current consumption | 1.5 A (max.), 0.01 A (during standby) |
