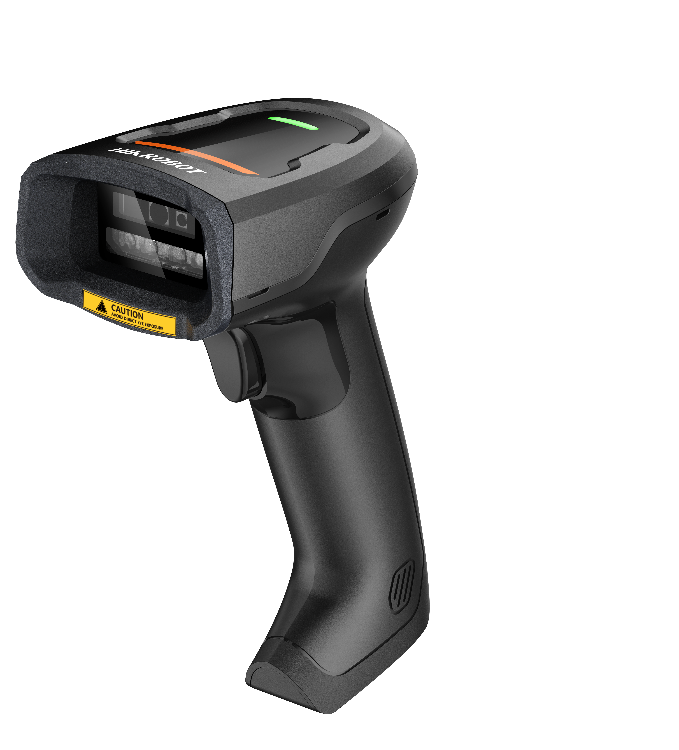

HIKROBOT Handscanner MV-IDH2000P/13NR/05RN/U
HikRobot Handscanner MV-IDH2000P/13NR/05RN/U ist ein Handscanner von HikRobot (Industial Wired Handheld Code Reader).
Preis und Verfügbarkeit auf Anfrage
Unsicher bei der Auswahl?
Ein technischer Ansprechpartner prüft Ihre Anwendung und empfiehlt die passende Konfiguration.
Anwendung prüfen lassenBeschreibung
Key Feature
- Built-in code reading algorithm for decoding different types of 1D codes and 2D codes.
- Provides good robustness to read codes with spots, defects and low contrast ratio.
- Supports switching to white light, red light, or blue light, and supports polling of three-color light source, providing greater scene adaptability and enhanced code reading performance.
- Supports multiple output modes, such as USB-HID, USB-CDC, and RS-232.
- Easy to replace components.
- IP42 and drop height of 1.8 m.
- Supports displaying device status via buzzer and indicator.
Technische Daten
| Artikelnummer | MV-IDH2000P |
|---|---|
| Typ | Industial Wired Handheld Code Reader |
| Codearten | 1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D codes: QR Code, Data Matrix, MicroQR, Aztec Stacked code: PDF417 |
| Min. accuracy | 1D codes: 3 mil 2D codes: 4 mil |
| Sensortyp | CMOS |
| Auflösung | 1280 × 1024 |
| Schärfentiefe | Code 128 (3 mil): 30 mm to 105 mm Code 128 (10 mil): 20 mm to 200 mm Data Matrix (5 mil): 40 mm to 80 mm QR Code (10 mil): 20 mm to 135 mm QR Code (20 mil): 20 mm to 195 mm |
| Sichtfeld | Horizontal 39°, vertical 29° |
| Detection angle | Tilt angle ± 65°, skew angle ± 65°, rotation angle 360° |
| Symbol contrast | 20% |
| Kommunikationsprotokoll | SmartSDK, Serial, USB (HID/CDC) |
| Schnittstelle | USB 2.0 |
| Stromversorgung | 5 VDC |
| Current consumption | 0.9 A (max.), 0.5 A (typical) |
| Umgebungslicht | 0 lux to 100000 lux |
| Lichtquelle | White LED, red LED, blue LED |
| Zielsystem | Cross laser aiming |
| Prompt | LED indicator, buzzer, vibrator |
| Abmessungen | 66.5 mm × 94 mm × 169.5 mm (2.6" × 3.7" × 6.7") |
| Gewicht | Approx. 160 g (0.4 lb.) |
| Schutzklasse | IP42 |
| Temperatur | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Luftfeuchtigkeit | 5% RH to 95% RH (no condensation) |
| Laser safety class | Laser 2 |
| Wellenlänge | 650 nm |
| Pulse width | 15 ms |
| Maximum power | 1 mW |
| Software | IDMVS |
| Zertifizierung | CE, KC |
