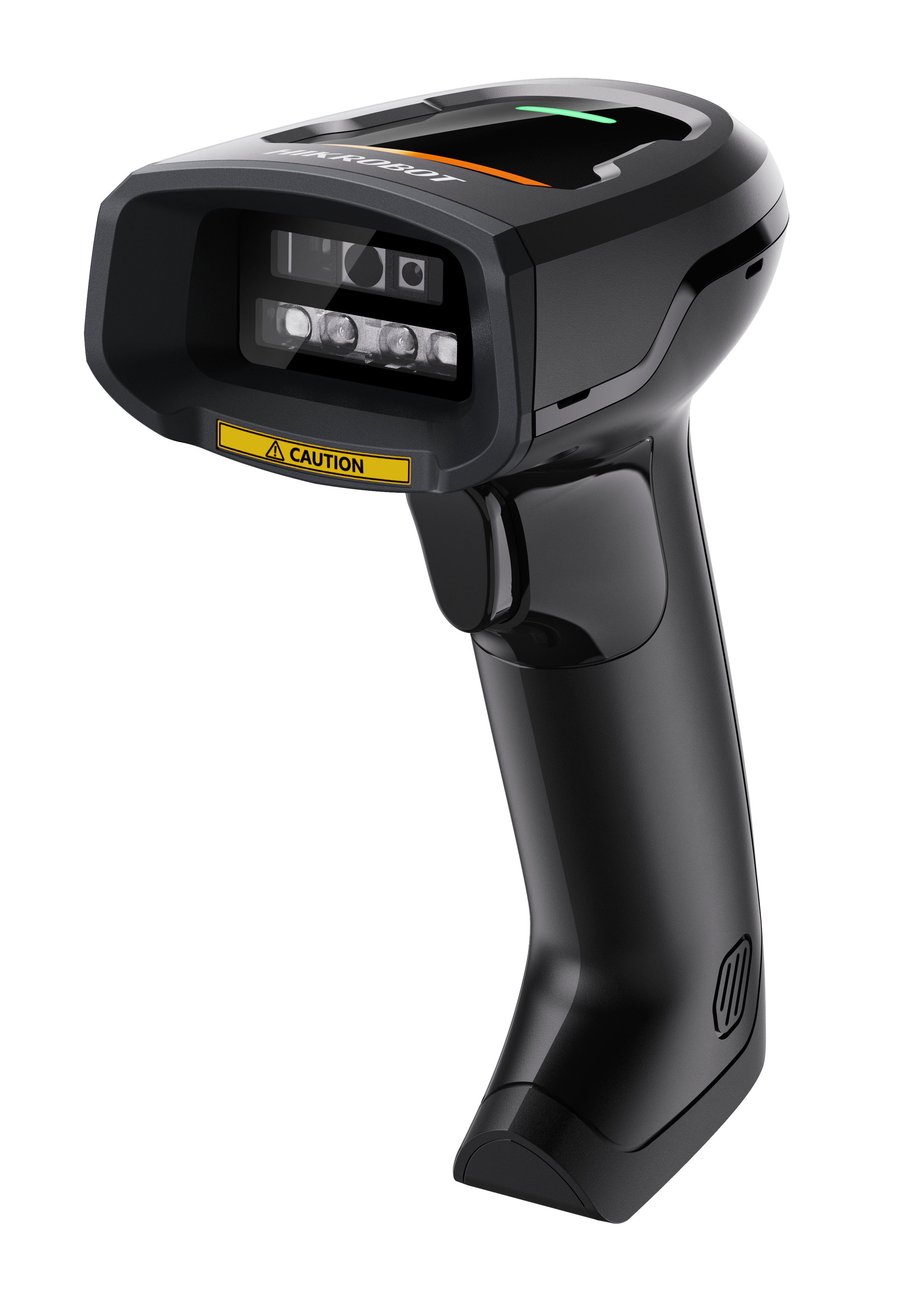

HIKROBOT Handscanner MV-IDH2000PB/13NR/05RN
HikRobot Handscanner MV-IDH2000PB/13NR/05RN ist ein Handscanner von HikRobot (Industial Wireless Handheld Code Reader).
Preis und Verfügbarkeit auf Anfrage
Unsicher bei der Auswahl?
Ein technischer Ansprechpartner prüft Ihre Anwendung und empfiehlt die passende Konfiguration.
Anwendung prüfen lassenBeschreibung
Key Feature
- Built-in code reading algorithm for decoding different types of 1D codes and 2D codes.
- Provides good robustness to read codes with spots, defects and low contrast ratio.
- Supports switching to white light, red light, or blue light, and supports polling of two-color or three-color light source, providing greater scene adaptability and enhanced code reading performance.
- Adopts Bluetooth 5.0 wireless technology, and supports stable connection with max. transmission distance of 80 meters in open areas for more efficient operation.
- Adopts 2700 mAh battery with long standby time.
- IP42 and drop height of 1.8 m (50 times).
Technische Daten
| Artikelnummer | MV-IDH2000PB |
|---|---|
| Typ | Industial Wireless Handheld Code Reader |
| Codearten | 1D codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D codes: QR Code, Data Matrix, MicroQR, Aztec, Han Xin Stacked code: PDF417 GSI code: GS1-128, GS1-QR, GS1-Data Matrix |
| Min. accuracy | 1D codes: 3 mil 2D codes: 4 mil |
| Sensortyp | CMOS |
| Auflösung | 1280 × 1024 |
| Schärfentiefe | Code 128 (3 mil): 30 mm to 105 mm Code 128 (10 mil): 20 mm to 200 mm Data Matrix (5 mil): 40 mm to 80 mm QR Code (10 mil): 20 mm to 135 mm QR Code (20 mil): 20 mm to 195 mm |
| Detection angle | Tilt angle ± 65°, skew angle ± 65°, rotation angle 360° |
| Sichtfeld | Horizontal 39°, vertical 29° |
| Symbol contrast | 20% |
| Communication mode | Bluetooth wireless module, supports Bluetooth BT 5.1, BLE |
| Wireless range | 80 m (open range) |
| Kommunikationsprotokoll | SmartSDK, Bluetooth, USB (HID/CDC) |
| Schnittstelle | USB 2.0 (Type B) |
| Battery | 2700 mAh |
| Charging time | 6 h |
| Endurance | 10 h (interval scanning, once in 2 seconds) |
| Stromversorgung | 5 VDC |
| Current consumption | 1.5 A (max.), 0.14 A (during standby) |
| Umgebungslicht | 0 lux to 100000 lux |
| Lichtquelle | White LED, red LED, blue LED, and supports polling of two-color or three-color light source. |
| Zielsystem | Cross laser aiming |
| Prompt | LED indicator, buzzer, vibrator |
| Abmessungen | 66.5 mm × 96.9 mm × 170.2 mm (2.6" × 3.8" × 6.7") |
| Gewicht | Approx. 160 g (0.4 lb.) |
| Schutzklasse | IP42 |
| Temperatur | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) Charging temperature: 0 °C to 40 °C (32 °F to 104 °F) |
| Luftfeuchtigkeit | 5% RH to 95% RH (no condensation) |
| Drop height | 1.8 m, 50 times |
| Laser safety class | Laser 1 |
| Wellenlänge | 650 nm |
| Pulse width | 8 ms |
| Maximum power | 0.39 mW |
| Software | IDMVS |
| Zertifizierung | CE, KC |
| Schnittstelle | USB 2.0 (Type B), USB 2.0 (Type A) |
| Stromversorgung | 5 VDC |
| Current consumption | 1.5 A (max.), 0.01 A (during standby) |
| Abmessungen | 82.6 mm × 121.8 mm × 76.1 mm (3.3" × 4.8" × 3.0") |
| Gewicht | Approx. 120 g (0.3 lb.) |
| Schutzklasse | IP40 |
| Temperatur | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Luftfeuchtigkeit | 5% RH to 95% RH (no condensation) |
Dokumente
- Datenblatt herunterladen
Data Sheet HikRobot Handscanner MV-IDH2000PB/13NR/05RN
Datenblatt · EN · 616 KB
- Herunterladen
Firmware HikRobot Handscanner MV-IDH2000PB/13NR/05RN
Technische Zeichnung · EN · 38632 KB
- Herunterladen
Drawing HikRobot Handscanner MV-IDH2000PB/13NR/05RN
Technische Zeichnung · EN · 401 KB
- Herunterladen
Industrial Protocol HikRobot Handscanner MV-IDH2000PB/13NR/05RN
Technische Zeichnung · EN · 7713 KB
- Herunterladen
User Manual HikRobot Handscanner MV-IDH2000PB/13NR/05RN
Handbuch · EN · 3678 KB
