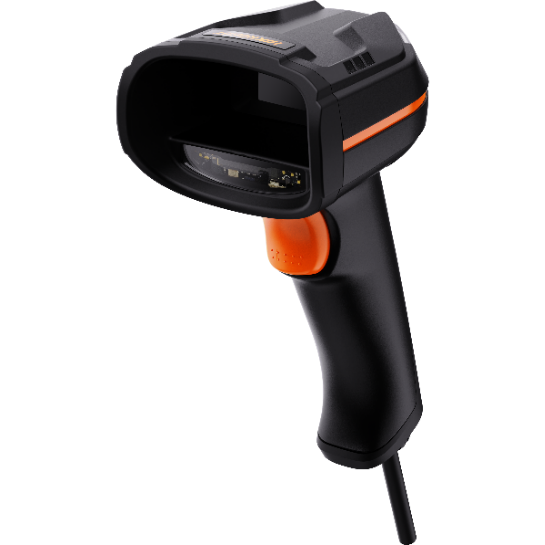

HIKROBOT Handscanner MV-IDH3000/13NR/05RN/L
HikRobot Handscanner MV-IDH3000/13NR/05RN/L ist ein Handscanner von HikRobot (Lan Handheld Code Reader).
Preis und Verfügbarkeit auf Anfrage
Unsicher bei der Auswahl?
Ein technischer Ansprechpartner prüft Ihre Anwendung und empfiehlt die passende Konfiguration.
Anwendung prüfen lassenBeschreibung
Key Feature
- Built-in code reading algorithm for decoding different types of 1D and 2D codes.
- Provides good robustness to read codes with spots, defects and low contrast ratio.
- Supports continuous code reading and batch code reading for improving code reading efficiency.
- Supports communication protocols, including TCP, FTP, UDP, USB, Serial, and SmartSDK.
- The device with industrial protocols supports Profinet, Ethernet/IP, Modbus, MC/SLMP, and FINS communication protocols.
- Easy to replace components.
Technische Daten
| Artikelnummer | MV-IDH3000 |
|---|---|
| Typ | Lan Handheld Code Reader |
| Codearten | 1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D matrix codes: QR Code, Data Matrix, MicroQR, Aztec, GS1-DM, GS1-QR, Han Xin Stacked code: PDF417 |
| Min. accuracy | 3 mil |
| Sensortyp | CMOS |
| Auflösung | 1280 × 1024 |
| Schärfentiefe | Code 128 (3 mil): 25 mm to 70 mm Code 128 (10 mil): 10 mm to 170 mm Code 39 (5 mil): 15 mm to 100 mm Data Matrix (5 mil): 30 mm to 60 mm Data Matrix (10 mil): 5 mm to 115 mm |
| Sichtfeld | Horizontal 40°, vertical 34° |
| Detection angle | Tilt angle ± 60°, skew angle ± 60°, rotation angle 360° |
| Symbol contrast | 20% |
| Kommunikationsprotokoll | SmartSDK, TCP Client, FTP, TCP Server, UDP, Serial (RS-232) |
| Schnittstelle | Fast Ethernet (100 Mbit/s), RS-232, DC terminal |
| Stromversorgung | 12 VDC to 24 VDC |
| Current consumption | 0.5 A (max.), 0.28 A (typical) |
| Brennweite | 4.7 mm |
| Umgebungslicht | 0 lux to 100000 lux |
| Lichtquelle | Red LED |
| Zielsystem | Cross laser aiming |
| Prompt | LED indicator, buzzer, vibrator |
| Abmessungen | 74.4 mm × 86.6 mm × 190.2 mm (2.9" × 3.4" × 7.5") |
| Gewicht | Approx. 160 g (0.4 lb.) |
| Schutzklasse | IP52 |
| Temperatur | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Luftfeuchtigkeit | 20% RH to 80% RH (no condensation) |
| Drop height | Dropping: 1.8 m, 50 times Rolling: 0.5 m, 1200 times |
| Static electricity resistant | ± 16 kV (air discharge), ± 8 kV (contact discharge) |
| Laser safety class | Laser 2 |
| Wellenlänge | 650 nm |
| Pulse width | 8 ms |
| Maximum power | 1 mW |
| Software | IDMVS |
| Zertifizierung | CE, KC |
