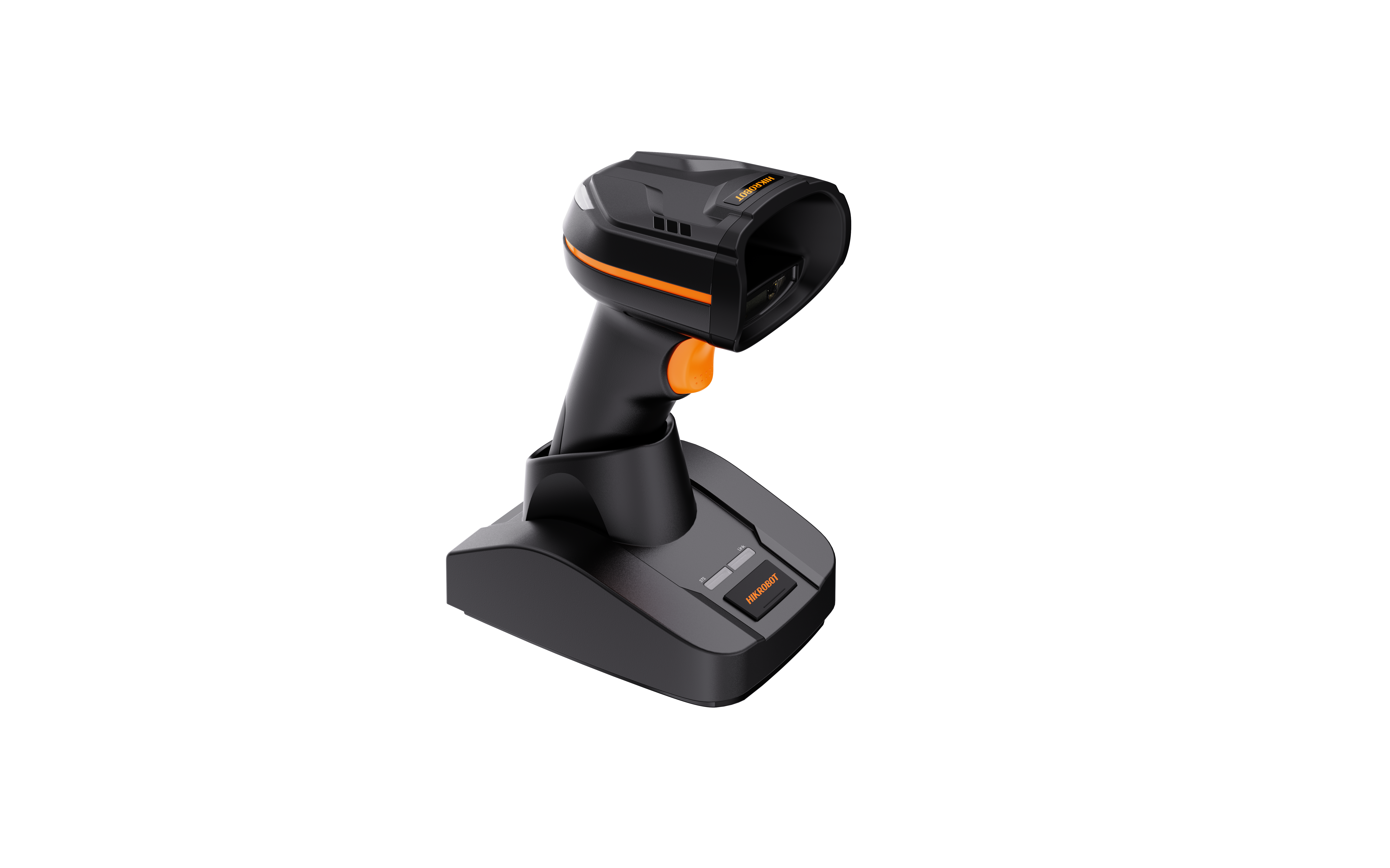

HIKROBOT Handscanner MV-IDH3000B/13SR/05RN/LS

Name: HIKROBOT Handscanner MV-IDH3000B/13SR/05RN/LS
Brand: HIKROBOT
SKU: MV-IDH3000B

HikRobot Handscanner MV-IDH3000B/13SR/05RN/LS ist ein Handscanner von HikRobot (Wireless Lan Handheld Code Reader Package).

Preis und Verfügbarkeit auf Anfrage

Unsicher bei der Auswahl?

Ein technischer Ansprechpartner prüft Ihre Anwendung und empfiehlt die passende Konfiguration.

Anwendung prüfen lassen

Beschreibung

Key Feature

- Built-in code reading algorithm for decoding different types of 1D and 2D codes.

- Provides good robustness to read codes with spots, defects and low contrast ratio.

- Supports continuous code reading, batch code reading for improving code reading efficiency.

- Adopts Bluetooth 5.0 wireless technology to provide convenient and efficient operations.

- With smart bases, parameter configuration and device management via IDMVS client software are supported.

Technische Daten

Artikelnummer	MV-IDH3000B
Typ	Wireless Lan Handheld Code Reader Package
Codearten	1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D matrix codes: QR Code, Data Matrix, MicroQR, Aztec, GS1-DM, GS1-QR, Han Xin Stacked code: PDF417
Min. accuracy	4 mil
Sensortyp	CMOS
Auflösung	1280 × 1024
Schärfentiefe	Code 39 (5 mil): 40 mm to 160 mm Code 128 (10 mil): 10 mm to 400 mm Data Matrix (10 mil): 30 mm to 200 mm QR Code (15 mil): 15 mm to 280 mm QR Code (20 mil): 20 mm to 370 mm
Sichtfeld	Horizontal 40°, vertical 34°
Detection angle	Tilt angle ± 60°, skew angle ± 60°, rotation angle 360°
Symbol contrast	20%
Communication mode	Bluetooth BT 5.0, BLE
Wireless range	100 m (open range)
Battery	3150 mAh
Charging time	Shutdown mode: 12 VDC (12 V, 2 A): 3.5 h
Endurance	13 h (interval scanning, once in 2 seconds)
Brennweite	4.7 mm
Umgebungslicht	0 lux to 100000 lux
Lichtquelle	Red LED
Zielsystem	Cross laser aiming
Prompt	LED indicator, buzzer, vibrator
Abmessungen	74.4 mm × 86.6 mm × 179.5 mm (2.9" × 3.4" × 7.1")
Gewicht	Approx. 230 g (0.5 lb.)
Schutzklasse	IP52
Temperatur	Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) Charging temperature: 0 °C to 40 °C (32 °F to 104 °F)
Luftfeuchtigkeit	20% RH to 80% RH (no condensation)
Drop height	Dropping: 1.8 m, 50 times Rolling: 0.5 m, 1200 times
Static electricity resistant	± 16 kV (air discharge), ± 8 kV (contact discharge)
Laser safety class	Laser 2
Wellenlänge	650 nm
Pulse width	8 ms
Maximum power	1 mW
Software	IDMVS
Zertifizierung	CE, KC
Kommunikationsprotokoll	SmartSDK, TCP Client, FTP, TCP Server, UDP, Serial (RS-232), Bluetooth
Schnittstelle	Fast Ethernet (100 Mbit/s), RS-232, DC terminal
Stromversorgung	12 VDC to 24 VDC
Charging time	4 h
Current consumption	0.7 A (max.), 0.06 A (during standby)
Abmessungen	100.9 mm × 131.8 mm × 83.6 mm (4.0" × 5.2" × 3.3")
Gewicht	Approx. 180 g (0.4 lb.)
Luftfeuchtigkeit	20% RH to 80% RH (no condensation)
Schutzklasse	IP40
Temperatur	Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) Charging temperature: 0 °C to 40 °C (32 °F to 104 °F)

Dokumente

Data Sheet HikRobot Handscanner MV-IDH3000B/13SR/05RN/LS
Datenblatt · EN · 715 KB
Datenblatt herunterladen
Firmware HikRobot Handscanner MV-IDH3000B/13SR/05RN/LS
Technische Zeichnung · EN · 13173 KB
Herunterladen
Firmware HikRobot Handscanner MV-IDH3000B/13SR/05RN/LS
Technische Zeichnung · EN · 39867 KB
Herunterladen
Drawing HikRobot Handscanner MV-IDH3000B/13SR/05RN/LS
Technische Zeichnung · EN · 3431 KB
Herunterladen
Industrial Protocol HikRobot Handscanner MV-IDH3000B/13SR/05RN/LS
Technische Zeichnung · EN · 7713 KB
Herunterladen
Quick Start Guide HikRobot Handscanner MV-IDH3000B/13SR/05RN/LS
Handbuch · EN · 510 KB
Herunterladen
User Manual HikRobot Handscanner MV-IDH3000B/13SR/05RN/LS
Handbuch · EN · 3899 KB
Herunterladen
User Manual HikRobot Handscanner MV-IDH3000B/13SR/05RN/LS
Handbuch · EN · 4052 KB
Herunterladen
