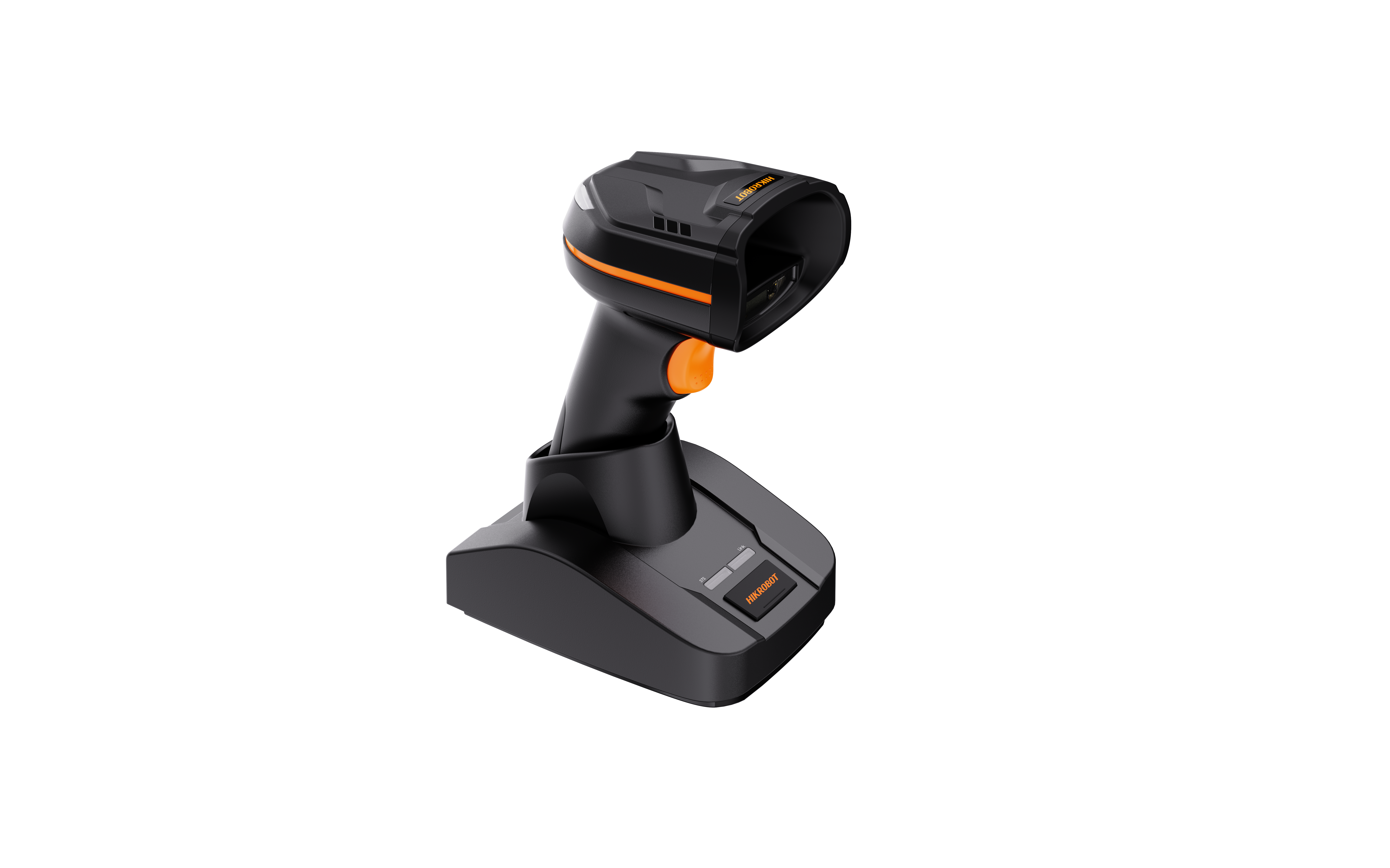

HIKROBOT Handscanner MV-IDH3000B/13SR/05RN/US
HikRobot Handscanner MV-IDH3000B/13SR/05RN/US ist ein Handscanner von HikRobot (Wireless USB Handheld Code Reader Package).
Preis und Verfügbarkeit auf Anfrage
Unsicher bei der Auswahl?
Ein technischer Ansprechpartner prüft Ihre Anwendung und empfiehlt die passende Konfiguration.
Anwendung prüfen lassenBeschreibung
Key Feature
- Built-in code reading algorithm for decoding different types of 1D and 2D codes.
- Provides good robustness to read codes with spots, defects and low contrast ratio.
- Supports continuous code reading, batch code reading for improving code reading efficiency.
- Adopts Bluetooth 5.0 wireless technology to provide convenient and efficient operations.
- With smart bases, parameter configuration and device management via IDMVS client software are supported.
Technische Daten
| Artikelnummer | MV-IDH3000B |
|---|---|
| Typ | Wireless USB Handheld Code Reader Package |
| Codearten | 1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D matrix codes: QR Code, Data Matrix, MicroQR, Aztec, GS1-DM, GS1-QR, Han Xin Stacked code: PDF417 |
| Min. accuracy | 4 mil |
| Sensortyp | CMOS |
| Auflösung | 1280 × 1024 |
| Schärfentiefe | Code 39 (5 mil): 40 mm to 160 mm Code 128 (10 mil): 10 mm to 400 mm Data Matrix (10 mil): 30 mm to 200 mm QR Code (15 mil): 15 mm to 280 mm QR Code (20 mil): 20 mm to 370 mm |
| Sichtfeld | Horizontal 40°, vertical 34° |
| Detection angle | Tilt angle ± 60°, skew angle ± 60°, rotation angle 360° |
| Symbol contrast | 20% |
| Communication mode | Bluetooth BT 5.0, BLE |
| Wireless range | 100 m (open range) |
| Battery | 3150 mAh |
| Charging time | Shutdown mode: USB 2.0 (5 V, 500 mA): 8.5 h, USB 3.0 (5 V, 1 A): 8.5 h 12 VDC (12 V, 2 A): 3.5 h |
| Endurance | 13 h (interval scanning, once in 2 seconds) |
| Brennweite | 4.7 mm |
| Umgebungslicht | 0 lux to 100000 lux |
| Lichtquelle | Red LED |
| Zielsystem | Cross laser aiming |
| Prompt | LED indicator, buzzer, vibrator |
| Abmessungen | 74.4 mm × 86.6 mm × 179.5 mm (2.9" × 3.4" × 7.1") |
| Gewicht | Approx. 230 g (0.5 lb.) |
| Schutzklasse | IP52 |
| Temperatur | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) Charging temperature: 0 °C to 40 °C (32 °F to 104 °F) |
| Luftfeuchtigkeit | 20% RH to 80% RH (no condensation) |
| Drop height | Dropping: 1.8 m, 50 times Rolling: 0.5 m, 1200 times |
| Static electricity resistant | ± 16 kV (air discharge), ± 8 kV (contact discharge) |
| Laser safety class | Laser 2 |
| Wellenlänge | 650 nm |
| Pulse width | 8 ms |
| Maximum power | 1 mW |
| Software | IDMVS |
| Zertifizierung | CE, KC |
| Kommunikationsprotokoll | SmartSDK, USB (HID/CDC), Bluetooth, Serial (RS-232) |
| Schnittstelle | USB 2.0, USB 3.0, RS-232, DC terminal1 |
| Stromversorgung | USB: 5 VDC DC terminal: 12 VDC to 24VDC |
| Charging time | USB: 8.5 h |
| Current consumption | USB 2.0: 1.5 A (max.), 0.14 A (during standby) DC terminal: 0.7 A (max.), 0.06 A (during standby) |
| Abmessungen | 100.9 mm × 131.8 mm × 83.6 mm (4.0" × 5.2" × 3.3") |
| Gewicht | Approx. 180 g (0.4 lb.) |
| Luftfeuchtigkeit | 20% RH to 80% RH (no condensation) |
| Schutzklasse | IP40 |
| Temperatur | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) Charging temperature: 0 °C to 40 °C (32 °F to 104 °F) |
