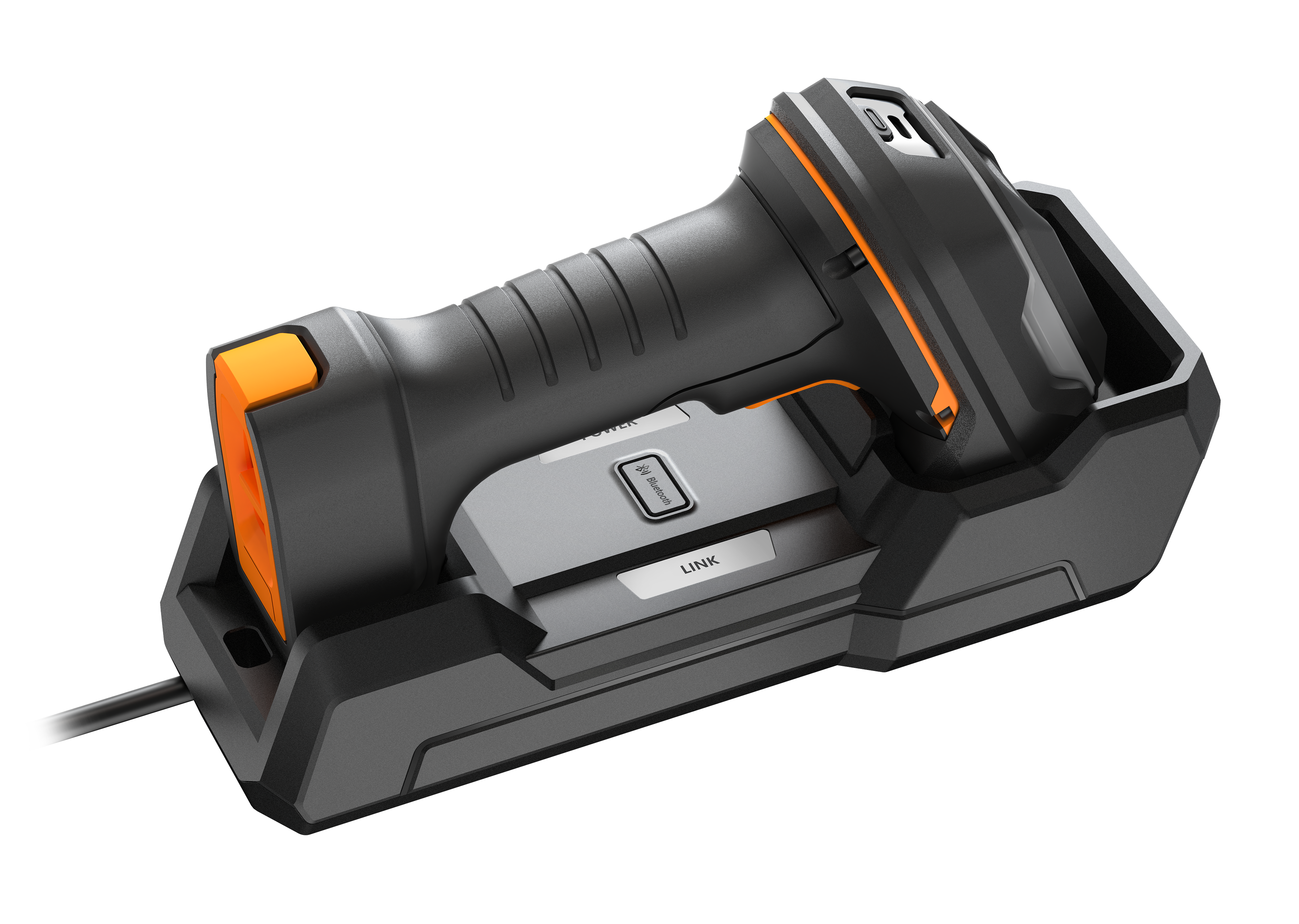

HIKROBOT Handscanner MV-IDH9000B/13DP/04RP/LS
HikRobot Handscanner MV-IDH9000B/13DP/04RP/LS ist ein Handscanner von HikRobot (Ultra-ragged Wireless Handheld Code Reader Package).
Preis und Verfügbarkeit auf Anfrage
Unsicher bei der Auswahl?
Ein technischer Ansprechpartner prüft Ihre Anwendung und empfiehlt die passende Konfiguration.
Anwendung prüfen lassenBeschreibung
Key Feature
- Built-in code reading algorithm and illumination system for decoding codes with spots, defects and low contrast ratio.
- The device which supports ultra-small code and DPM code recognition has a lens for reading ultra-small code with a minimum module size of 0.04 mm and a zoom lens for high-speed reading with large depth of field.
- The device which supports DPM code recognition with high performance can read challenging codes with spots, defects, low contrast ratio, or laser engraving.
- Adopts Bluetooth 5.0 wireless technology to provide stable connection with max. transmission distance of 100 meters in open areas, and supports mobile terminal connection via Bluetooth for convenient and efficient operations.
- Adopts 4650 mAh battery with long standby time.
- Supports wireless charging, preventing potential metal electrode wear and metal filing interference.
- Adopts 4 lighting modes for different scenes, such as direct lighting, polarized lighting, diffused reflection lighting, and bi-directional lighting.
Technische Daten
| Artikelnummer | MV-IDH9000B |
|---|---|
| Typ | Ultra-ragged Wireless Handheld Code Reader Package |
| Codearten | 1D codes: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, ITF25, ITF14, UPCA, UPCE 2D matrix codes: QR Code, Data Matrix, MicroQR, Aztec Stacked barcode: PDF417 |
| Min. accuracy | 3 mil |
| Sensortyp | CMOS |
| Auflösung | 1280 × 1024 |
| Schärfentiefe | Code128 (3 mil): 0 mm to 100 mm Code 128 (10 mil): 0 mm to 250 mm Code 128 (20 mil): 0 mm to 350 mm Code 39 (5 mil): 0 mm to 150 mm Data Matrix (5 mil): 5 mm to 79 mm QR Code (20 mil): 0 mm to 250 mm |
| Sichtfeld | Horizontal 43.6°, vertical 35.5° |
| Detection angle | Tilt angle ± 60°, skew angle ± 60°, rotation angle 360° |
| Symbol contrast | 20% |
| Communication mode | Bluetooth BT 5.0, BLE |
| Wireless range | 100 m (open area) |
| Battery | 4650 mAh |
| Charging time | Shutdown mode (0% to 100%): 12 VDC (12 V, 2 A): 6 h; PoE: 6 h; Type-C: 6 h Shutdown mode (7% to 80%): 12 VDC (12 V, 2 A): 3 h; PoE: 3 h |
| Endurance | 14 h (interval scanning, once in 20 seconds) |
| Max. current | 1.5 A |
| Umgebungslicht | 0 lux to 100000 lux |
| Lichtquelle | Diffused reflection lighting (red LED), bi-directional lighting (red LED), direct lighting (white LED), polarized lighting (white LED) Smart scanning mode is set by default, and auto polling of lights is supported according to the code reading scene. |
| Zielsystem | 650 nm laser (red light) |
| Prompt | LED indicator, buzzer, vibrator |
| Display | 0.96" OLED display |
| Abmessungen | 74 mm × 109.9 mm × 227.1 mm (2.9" × 4.3" × 8.9") |
| Schutzklasse | IP67 |
| Gewicht | Approx. 580 g (1.3 lb.) |
| Temperatur | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) Charging temperature: 0 °C to 40 °C (32 °F to 104 °F) |
| Luftfeuchtigkeit | 5% RH to 95% RH (no condensation) |
| Drop height | Dropping: 2.5 m, 50 times Rolling: 0.5 m, 20000 times |
| Chemically resistant | ISO 16750 |
| Static electricity resistant | ± 25 kV (air discharge), ± 10 kV (contact discharge or indirect discharge) |
| Laser safety class | Laser 1 |
| Wellenlänge | 650 nm |
| Pulse width | 6.6 ms |
| Maximum power | 0.39 mW |
| Software | IDMVS |
| Zertifizierung | CE, KC |
| Kommunikationsprotokoll | SmartSDK, TCP Client, FTP, TCP Server, Profinet, EthernetIP, Modbus, UDP, Serial, Bluetooth, MELSEC |
| Schnittstelle | Fast Ethernet (100 Mbit/s)2, RS-232, DC terminal |
| Stromversorgung | DC terminal: 12 VDC to 24 VDC PoE: 48 VDC |
| Current consumption | DC terminal: 1.1 A (max.), 0.15 A (during standby) PoE: 0.35 A (max.), 0.1 A (during standby) |
| Charging time | 6 h |
| Abmessungen | 257.9 mm × 99 mm × 67.6 mm (10.2" × 3.9" × 2.7") |
| Gewicht | Approx. 380 g (0.8 lb.) |
| Schutzklasse | IP65 |
| Temperatur | 5% RH to 95% RH (no condensation) |
| Luftfeuchtigkeit | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
