HIKROBOT Handscanner MV-IDH9000B/SBASE/U

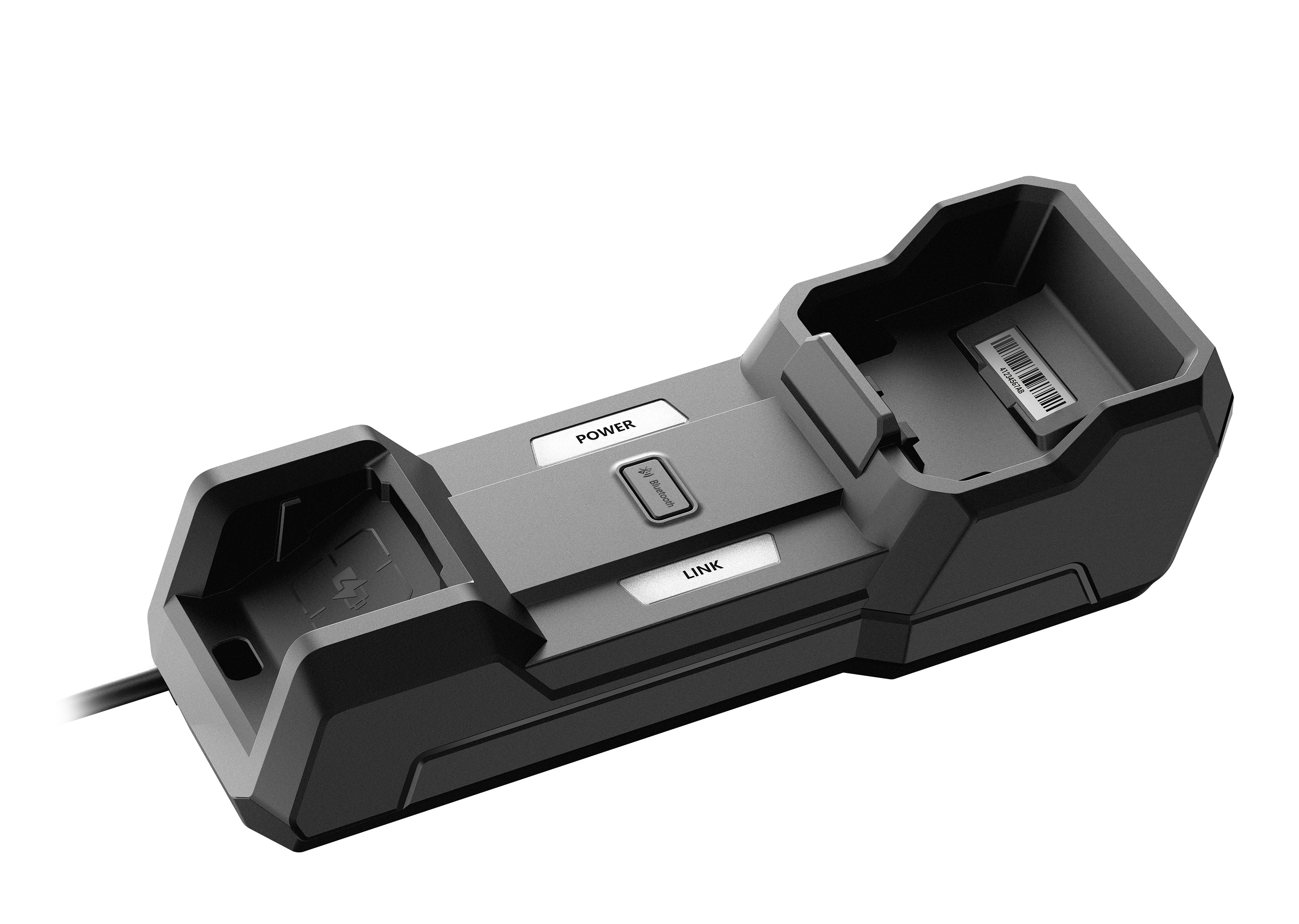

HikRobot Handscanner MV-IDH9000B/SBASE/U ist ein Handscanner von HikRobot (USB Smart Base).
Preis und Verfügbarkeit auf Anfrage
Unsicher bei der Auswahl?
Ein technischer Ansprechpartner prüft Ihre Anwendung und empfiehlt die passende Konfiguration.
Anwendung prüfen lassenBeschreibung
Key Feature
- Adopts Bluetooth 5.0 wireless technology to provide stable connection with max. transmission distance of 100 meters in open areas, and supports mobile terminal connection via Bluetooth for convenient and efficient operations.
- Supports wireless charging, preventing potential metal electrode wear and metal filing interference.
- Supports multiple charging methods, such as charging via smart base, Type-C connector, or PoE connection with smart base.
- The communication protocols supported by the USB type device are SmartSDK, USB, Serial, and Bluetooth. The communication protocols supported by the network type device are SmartSDK, TCP Client, Serial, FTP, TCP Server, UDP, Profinet, EthernetIP, Bluetooth, and Modbus.
Technische Daten
| Artikelnummer | MV-IDH9000B |
|---|---|
| Typ | USB Smart Base |
| Communication mode | Bluetooth BT 5.0, BLE |
| Wireless range | 100 m (open area) |
| Kommunikationsprotokoll | SmartSDK, USB (HID/CDC), Bluetooth, Serial1 |
| Schnittstelle | USB 2.0, DC terminal |
| Stromversorgung | DC terminal: 12 VDC to 24 VDC |
| Current consumption | 1.1 A (max.), 0.15 A (during standby) |
| Charging time | 6 h |
| Abmessungen | 257.9 mm × 99 mm × 67.6 mm (10.2" × 3.9" × 2.7") |
| Gewicht | Approx. 380 g (0.8 lb.) |
| Schutzklasse | IP65 |
| Temperatur | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Luftfeuchtigkeit | 5% RH to 95% RH (no condensation) |
Dokumente
- Datenblatt herunterladen
Data Sheet HikRobot Handscanner MV-IDH9000B/SBASE/U
Datenblatt · EN · 460 KB
- Herunterladen
Firmware HikRobot Handscanner MV-IDH9000B/SBASE/U
Technische Zeichnung · EN · 31655 KB
- Herunterladen
Industrial Protocol HikRobot Handscanner MV-IDH9000B/SBASE/U
Technische Zeichnung · EN · 7713 KB
- Herunterladen
Drawing HikRobot Handscanner MV-IDH9000B/SBASE/U
Technische Zeichnung · EN · 3022 KB
- Herunterladen
User Manual HikRobot Handscanner MV-IDH9000B/SBASE/U
Handbuch · EN · 4321 KB
