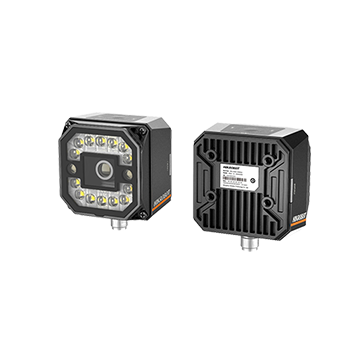

HIKROBOT Code-Leser MV-ID3400L-16S-WBN
HikRobot Code-Leser MV-ID3400L-16S-WBN ist ein Code-Leser von HikRobot (1.3 MP Smart Code Reader).
Preis und Verfügbarkeit auf Anfrage
Unsicher bei der Auswahl?
Ein technischer Ansprechpartner prüft Ihre Anwendung und empfiehlt die passende Konfiguration.
Anwendung prüfen lassenBeschreibung
Key Feature
- Adopts built-in deep learning algorithm to read codes with good robustness.
- Adopts CMOS global shutter sensor to provide high quality images.
- Adopts multiple IO interfaces for input and output signals.
- Adopts 14 LED lamps to provide light source.
- Supports polarized and non-polarized modes.
- Adopts 2 LED aiming lamps for easy installation and code aiming.
- Indicators on device display device status and code reading results.
Technische Daten
| Artikelnummer | MV-ID3400L-16S-WBN |
|---|---|
| Typ | 1.3 MP Smart Code Reader |
| Codearten | 1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11 and Industrial 25<br/>2-dimensional codes: QR Code, Data Matrix<br/>Stack codes: PDF 417 |
| Max. Bildrate | 60 fps |
| Max. Lesegeschwindigkeit | 84 codes/sec |
| Sensortyp | CMOS, global shutter |
| Pixelgröße | 4 μm × 4 μm |
| Sensorgröße | 1/2.7" |
| Auflösung | 1280 × 1024 |
| Belichtungszeit | 35 μs to 1 sec |
| Gain (Verstärkung) | 0 dB to 15 dB |
| Mono/Farbe | Mono |
| Kommunikationsprotokoll | SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC, ModBus, Fins, SLMP |
| Schnittstelle | Fast Ethernet |
| Digital-I/O | 17-pin M12 connector provides power and I/O, including non-isolated input (LineIn 0/1/2) × 3, non-isolated output (LineOut 0/1/2) × 3, RS-232 input × 1, RS-232 output × 1. <br/>Device trigger via pressing button on top supported. |
| Stromversorgung | 24 VDC |
| Max. Leistungsaufnahme | Approx. 20 W@24 VDC (light source enabled) |
| Brennweite | 6 mm (0.2") |
| Objektivanschluss | M12-mount, mechanical autofocus supported. |
| Objektivdeckel | Half polarized front cover by default. Polarized and transparent ones are optional. |
| Lichtquelle | White light by default. Red/blue/IR light is optional. |
| Anzeige | Power indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG) |
| Abmessungen | 65.2 mm × 65.2 mm × 47 mm (2.6" × 2.6" × 1.9") |
| Gewicht | Approx. 280 g (0.6 lb.) |
| Schutzklasse | IP67 (under proper installation of waterproof lens cap) |
| Temperatur | Working temperature: 0 °C to 50 °C (32 °F to 122 °F)<br/>Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Luftfeuchtigkeit | 20% to 95% RH, non-condensing |
| Software | IDMVS |
| Zertifizierung | CE, RoHS |
Dokumente
- Datenblatt herunterladen
Data Sheet HikRobot Code-Leser MV-ID3400L-16S-WBN
Datenblatt · EN · 476 KB
