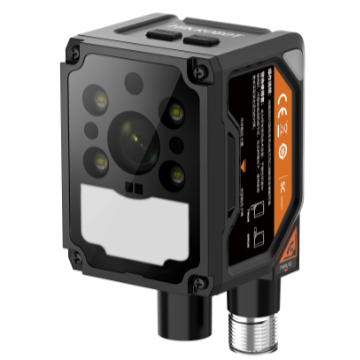

HIKROBOT Smart Kamera MV-SC3020XM-16M-WBN
- Auflösung:
- 1,9 MP
- Auflösung (H x B):
- 1536 × 1264
- Framerate:
- 100 fps
- Schnittstelle:
- Fast Ethernet
- Farbe/Mono:
- Mono
- Sensorgröße:
- 1/2.53"
- Sensortyp:
- Global Shutter, CMOS
- Schutzklasse:
- IP67
- Objektivanschluss:
- S-Mount (M12)
Preis und Verfügbarkeit auf Anfrage
Unsicher bei der Auswahl?
Ein technischer Ansprechpartner prüft Ihre Anwendung und empfiehlt die passende Konfiguration.
Anwendung prüfen lassenBeschreibung
Key Feature
- Adopts embedded hardware platform for high-speed image processing.
- Built-in high-precision positioning, measurement and recognition algorithms for counting, defects, existence, positioning and other functions.
- Supports RS-232, TCP, UDP, FTP, Modbus, PROFINET, EtherNet/IP and other communication modes.
- Adopts multiple IO interfaces for input and output signals.
- Supports viewing the device's status in real time via 360° visual indicator, convenient for debugging and maintenance.
- Rotatable cable tail design, suitable for narrow space.
- Adopts polarized and full-transparent multiple optical lighting with good environmental adaptability.
- IP67 protection without fear of harsh industrial application environments.
Technische Daten
| Artikelnummer | MV-SC3020XM-16M-WBN |
|---|---|
| Typ | SC3000X series vision sensor，2MP，Mono，16mm focal length |
| Vision-Tool | Measurement: P2P measurement, P2L measurement, contrast measurement, grayscale size, edge width measurement, width measurement, brightness average value, L2L angle, diameter measurement, line angle Existence: Spot existence, edge existence, contour existence, pattern existence, circle existence, line existence, anomaly judge, existence detection Count: Spot count, edge count, contour count, pattern count, learning-based count Recognition: Multi-object count, code recognition, category recognition, classification registration, object registration, OCR, learning-based OCR, character horizontal stripe detection Logic: Calculator, if module, logic judge, format output, condition judge, character comparison, combination judge Location: Calibration convert, single point alignment, point rectify, point grasp, scale transformation, fixture Deep learning: DL classification, DL object detection Defect detection: Anomaly detection Industry tools: OCR and defect detection |
| Lösungskapazität | Supports importing and exporting solutions, up to 32 solutions can be stored. |
| Kommunikationsprotokoll | RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV |
| Sensortyp | CMOS, global shutter |
| Pixelgröße | 3.45 μm × 3.45 μm |
| Sensorgröße | 1/2.53" |
| Auflösung | 1536 × 1264 |
| Max. Bildrate | 100 fps |
| Gain (Verstärkung) | 0 dB to 37 dB |
| Belichtungszeit | 35 μs to 1 sec |
| Pixelformat | Mono 8 |
| Mono/Farbe | Mono |
| Schnittstelle | Fast Ethernet (100 Mbit/s) |
| Digital-I/O | 12-pin M12 connector provides power and I/O, including isolated input (Line 0/1/2) × 3, isolated output (Line 3/4/5) × 3, RS-232 × 1 Supports device triggering via pressing top trigger button |
| Stromversorgung | 24 VDC |
| Leistungsaufnahme | Avg.: 7 W @ 24 VDC (light source enabled) Max.: 24 W @ 24 VDC (light source enabled) |
| Objektivanschluss | M12-mount, mechanical focus supported |
| Brennweite | 8 mm |
| Objektivdeckel | Polarized + diffuser + full-transparent lens cap |
| Lichtquelle | Focused white light by default. Red/blue/IR light source is optional |
| Zielsystem | 1 LED |
| Anzeige | 360° visual indicator |
| Abmessungen | Straight angle: 80.1 mm × 43 mm × 43.5 mm (3.2" × 1.7" × 1.7") Right angle: 58.5 mm × 43 mm × 64.6 mm (2.3" × 1.7" × 2.5") |
| Gewicht | Approx. 190 g (0.4 lb.) |
| Schutzklasse | IP67 (under proper installation of waterproof lens cap) |
| Temperatur | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Luftfeuchtigkeit | 20% RH to 95% RH (no condensation) |
| Vibrationsfestigkeit | Meets standard IEC 60068-2-6:2007. Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z) |
| Schockfestigkeit | Meets standard IEC 60068-2-27:2008. Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) |
| Software | SCMVS |
| Zertifizierung | CE, KC |
